AB11AB Series

Catalog

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Part	Electrical Life	Mechanical Life	Termination Style	Switch Function	Actuator Type	Circuit	Color - Actuator/Cap	Type	Voltage Rating - DC	Mounting Type	Actuator Marking	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Features
NKK Switches AB11AB-FC	50000 Cycles	50000 Cycles	PC Pin	Off-Mom	Button Round	SPST-NO	Red	Standard	28 V	Through Hole	No Marking	28 V	85 °C	-30 ░C	0.4 VA	Sealed - Fully

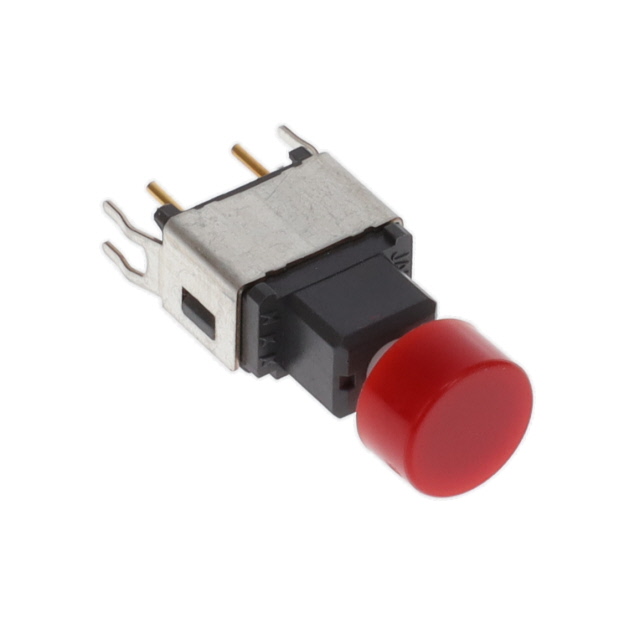

NKK Switches AB11AB-HC	50000 Cycles	50000 Cycles	PC Pin	Off-Mom	Button Round	SPST-NO	Red	Standard	28 V	Through Hole	No Marking	28 V	85 °C	-30 ░C	0.4 VA	Sealed - Fully
NKK Switches AB11AB1-HA	50000 Cycles	50000 Cycles	PC Pin	Off-Mom	Button Round	SPST-NO	Black	Standard	28 V	Through Hole	No Marking	28 V	85 °C	-30 ░C	0.4 VA	Sealed - Fully

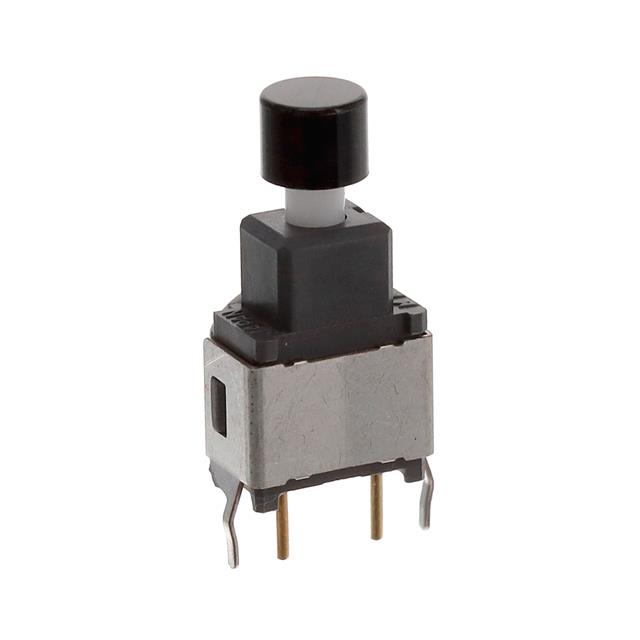

NKK Switches AB11AB1-FA	50000 Cycles	50000 Cycles	PC Pin	Off-Mom	Button Round	SPST-NO	Black	Standard	28 V	Through Hole	No Marking	28 V	85 °C	-30 ░C	0.4 VA	Sealed - Fully
NKK Switches AB11AB1	50000 Cycles	50000 Cycles	PC Pin	Off-Mom	Plunger for Cap	SPST-NO	White	Standard	28 V	Through Hole	No Marking	28 V	85 °C	-30 ░C	0.4 VA	Sealed - Fully
