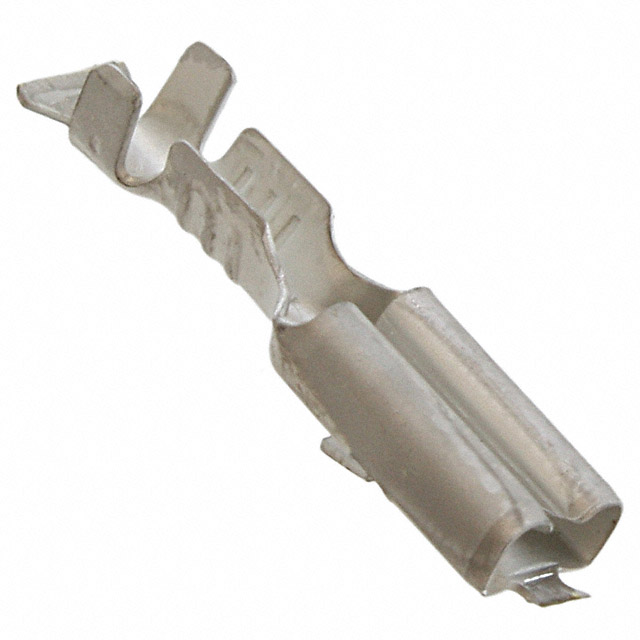

160173 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN QC RCPT 20-22AWG 0.110
| Part | Tab Thickness | Tab Thickness | Contact Material | Contact Finish | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Tab Length | Tab Length | Mounting Type | Termination | Gender | Insulation | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.032 in | 0.81 mm | Brass | Tin | Standard | 20 AWG | 22 AWG | 0.217 " | 5.5 mm | Free Hanging (In-Line) | Crimp | Female | Non-Insulated | 0.08 " | 2.03 mm | 0.05 " | 1.27 mm | 2.79 mm | 0.11 " |
