EDV14 Series

Catalog

STRONGHOLD FEMALE DISCONNECT, VI

Part	Insulation	Terminal Type	Contact Material	Tab Thickness	Tab Thickness	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width [x]	Tab Width [x]	Contact Finish	Features	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Termination	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall	Length - Overall	Insulation Diameter	Tab Length	Tab Length

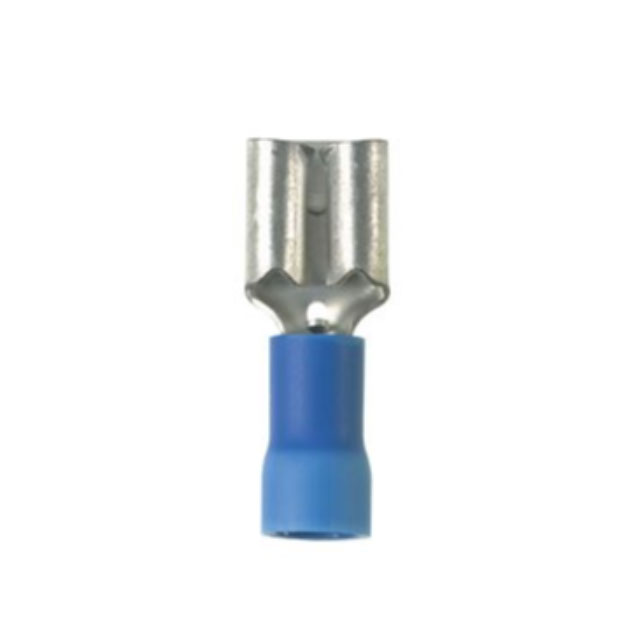

Panduit Corp EDV14-250B-Q	Non-Mating End Insulated	Standard	Brass	0.81 mm	0.032 in	Female	14 AWG	16 AWG	6.35 mm	0.25 in	Tin	Serrated Termination	Free Hanging (In-Line)	0.81 "	20.57 mm	Blue	Crimp
Panduit Corp EDV14-187MB-Q	Non-Mating End Insulated	Standard	Brass	0.81 mm	0.032 in	Male	14 AWG	16 AWG	4.75 mm	0.187 in	Tin	Serrated Termination	Free Hanging (In-Line)	0.75 in	19.05 mm	Blue	Crimp	4.19 mm	0.165 in
Panduit Corp EDV14-188B-L	Non-Mating End Insulated	Standard	Brass	0.51 mm	0.02 in	Female	14 AWG	16 AWG	4.75 mm	0.187 in	Tin	Butted Seam	Free Hanging (In-Line)			Blue	Crimp	3.45 mm	0.136 in	20.07 mm	0.79 in
Panduit Corp EDV14-250B-L	Non-Mating End Insulated	Standard	Brass	0.81 mm	0.032 in	Female	14 AWG	16 AWG	6.35 mm	0.25 in	Tin	Serrated Termination	Free Hanging (In-Line)	0.81 "	20.57 mm	Blue	Crimp

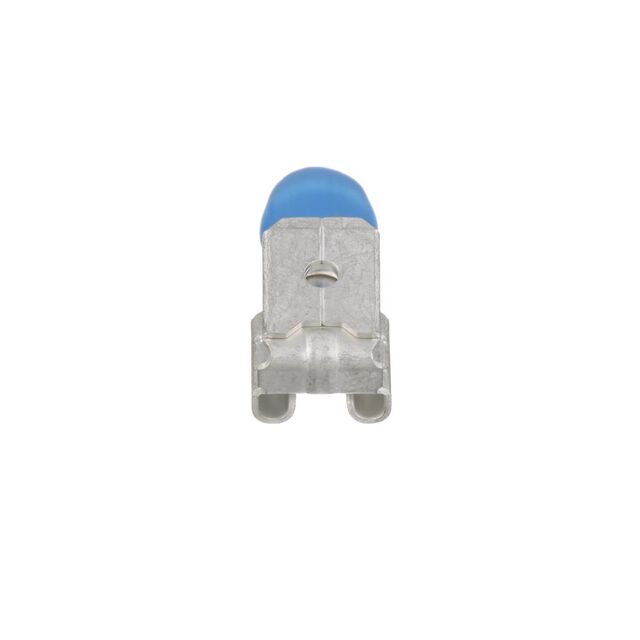

Panduit Corp EDV14-250P-LYY	Non-Mating End Insulated	Stacked	Brass	0.81 mm	0.032 in	Female Male	14 AWG	16 AWG	6.35 mm	0.25 in	Tin		Free Hanging (In-Line)	0.88 in	22.35 mm	Blue	Crimp		0.16 in			4.06 mm
Panduit Corp EDV14-250FIB-Q	Fully Insulated	Standard	Brass	0.81 mm	0.032 in	Female	14 AWG	16 AWG	6.35 mm	0.25 in	Tin	Butted Seam	Free Hanging (In-Line)	0.87 in	22.1 mm	Blue	Crimp	4.19 mm	0.165 in				0.3 in	7.62 mm

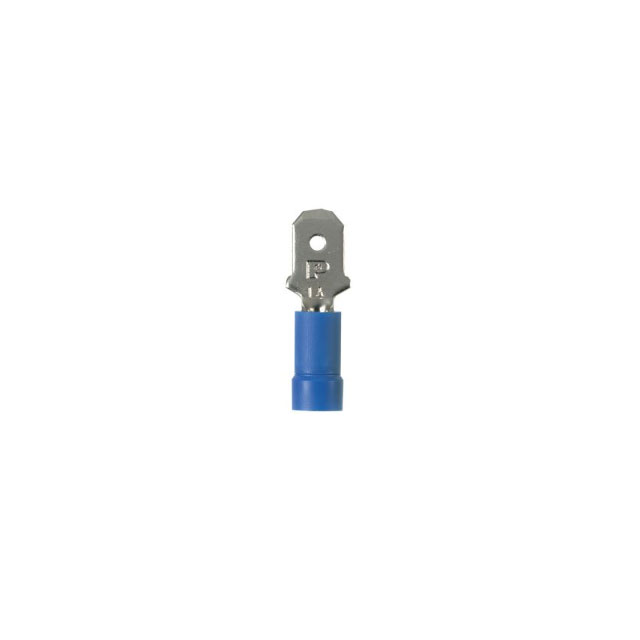

Panduit Corp EDV14-250M-Q	Non-Mating End Insulated	Standard	Copper	0.81 mm	0.032 in	Male	14 AWG	16 AWG	6.35 mm	0.25 in	Nickel	Brazed Seam	Free Hanging (In-Line)	0.96 in	24.38 mm	Blue	Crimp	4.57 mm	0.18 in
Panduit Corp EDV14-250M-L	Non-Mating End Insulated	Standard	Copper	0.81 mm	0.032 in	Male	14 AWG	16 AWG	6.35 mm	0.25 in	Nickel	Brazed Seam	Free Hanging (In-Line)	0.96 in	24.38 mm	Blue	Crimp	4.57 mm	0.18 in

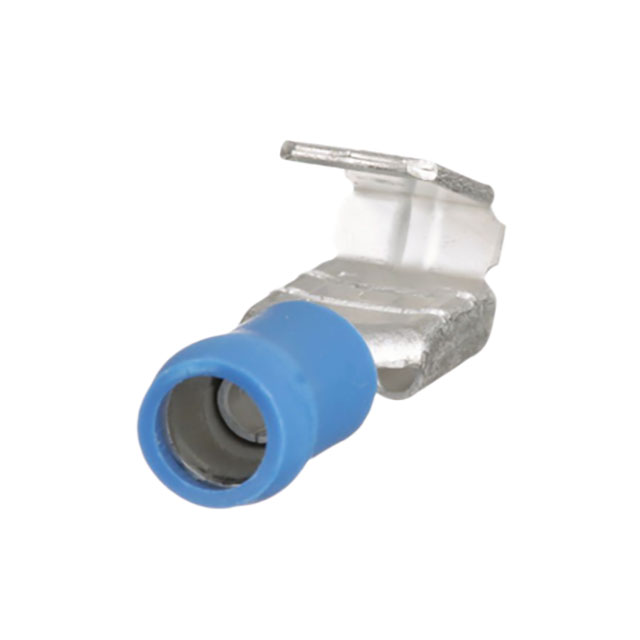

Panduit Corp EDV14-250P-Q	Non-Mating End Insulated	Stacked	Brass	0.81 mm	0.032 in	Female Male	14 AWG	16 AWG	6.35 mm	0.25 in	Tin		Free Hanging (In-Line)	0.88 in	22.35 mm	Blue	Crimp		0.16 in			4.06 mm
