043223 Series
Manufacturer: Molex
Beta
⌘K

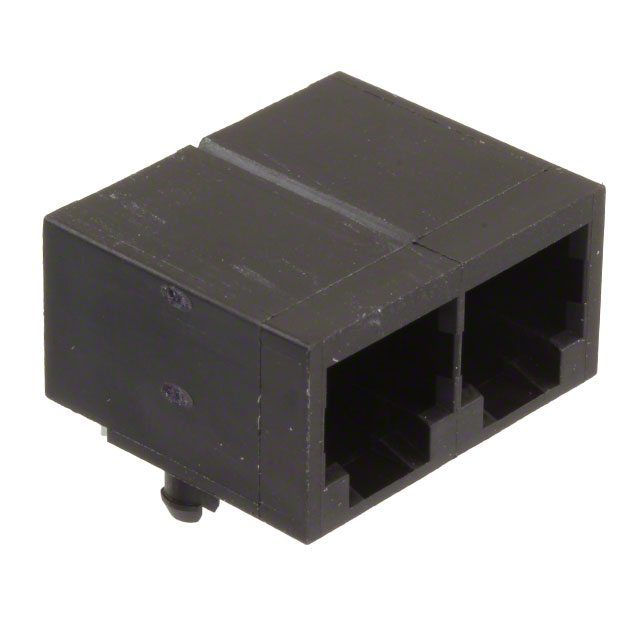

CONN MOD JACK 8P8C R/A UNSHLD
| Part | Connector Type | Number of Positions/Contacts | Number of Ports | Ratings | Mounting Type | LED Color | Orientation | Housing Material | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Rows | Tab Direction | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Jack | 8p8c (RJ45 Ethernet) | 3 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | Board Lock Panel Stops | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | |
Molex | Jack | 8p8c (RJ45 Ethernet) | 6 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | Board Lock Panel Stops | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | |
Molex | Jack | 8p4c | 4 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | ||
 Molex | Jack | 6p6c (RJ11 RJ12 RJ14 RJ25) | 2 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | ||
Molex | Jack | 6p6c (RJ11 RJ12 RJ14 RJ25) | 6 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | Board Lock Panel Stops | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | |
Molex | Jack | 4 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | Board Lock Panel Stops | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | 2 6 | |
Molex | Jack | 8p8c (RJ45 Ethernet) | 8 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | 85 °C | -40 °C | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | ||
Molex | Jack | 8p8c (RJ45 Ethernet) | 8 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | Board Lock Panel Stops | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | |
 Molex | Jack | 6p4c | 8 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold | ||
 Molex | Jack | 6p4c | 4 | Cat4 | Through Hole | Does Not Contain LED | 90 ° | Polyamide (PA) Nylon Glass Filled | Unshielded | 85 °C | -40 °C | 1 | Down | Solder | 50 µin | 1.27 µm | Phosphor Bronze | Gold |
