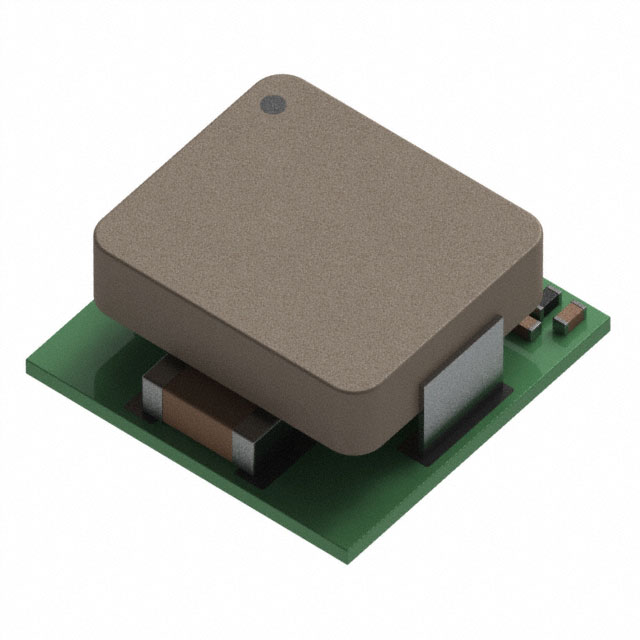

MUN24AD03 Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
DC DC CONVERTER 5-12V
| Part | Voltage - Input (Max) [Max] | Supplier Device Package | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Applications | Number of Outputs | Type | Features | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 34 V | 25-QFN (6x6) | 8 V | 85 °C | -40 C | 3 A | 0.14 in | 0.24 " | 6 mm | 3.5 mm | 6 mm | 0.24 " | Surface Mount | 12 V | 5 V | ITE (Commercial) | 1 | Non-Isolated PoL Module | OCP OTP Remote On/Off UVLO | 94 % |
