MF-LS Series

Catalog

PTC 3.4A 24V AXIAL STRAP 100C SW /BULK, BAG PACKAGING

Part	Approval Agency	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Max [Max]	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Time to Trip	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Package / Case	Size / Dimension [y]

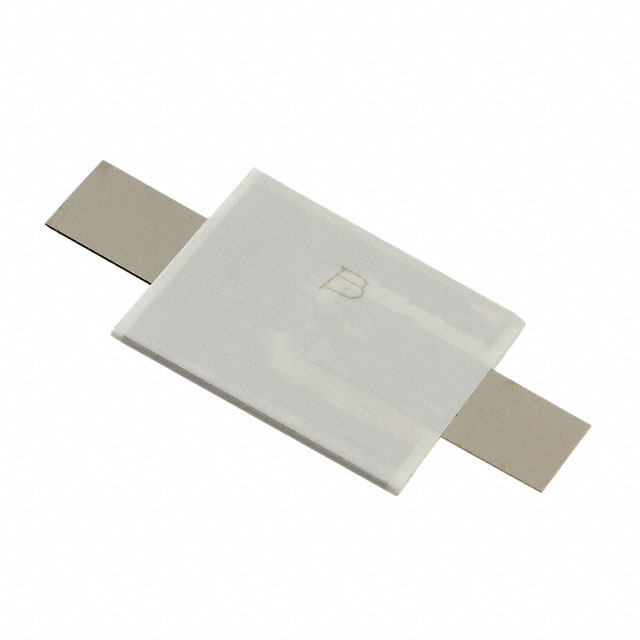

Bourns Inc. MF-LS340	cURus TUV	User Defined	50 mOhms	0.016 Ohms	Polymeric	1 mm	0.039 in	100 A	6.8 A	0.984 "	25 mm	0.604 in	15.35 mm	5 s	24 V	85 °C	-40 C	3.4 A	Strap
Bourns Inc. MF-LS300S	cURus TUV	User Defined	55 mOhms	15 mOhms	Polymeric	1.1 mm	0.043 "	100 A	6.3 A	1.185 "	30.1 mm	0.522 "		4 s	24 V	85 °C	-40 C	3 A	Strap	13.25 mm
Bourns Inc. MF-LS300	cURus TUV	User Defined	55 mOhms	15 mOhms	Polymeric	1.1 mm	0.043 "	100 A	6.3 A	1.185 "	30.1 mm	0.522 "		4 s	24 V	85 °C	-40 C	3 A	Strap	13.25 mm

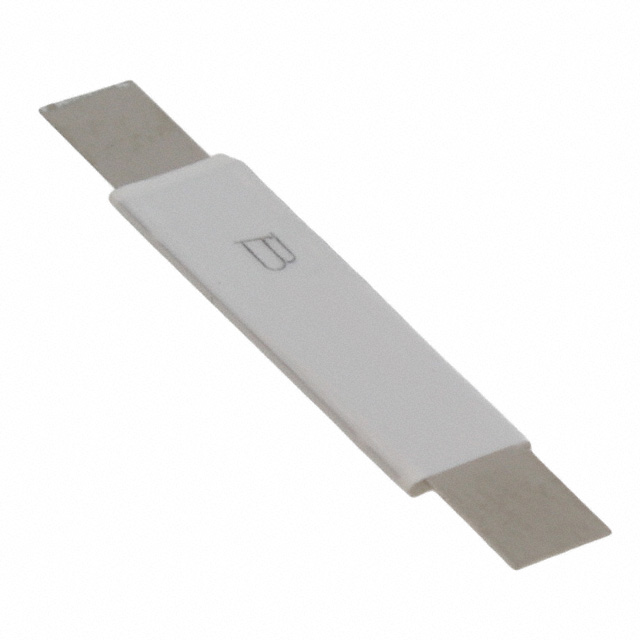

Bourns Inc. MF-LS180	cURus TUV	User Defined	120 mOhms	40 mOhms	Polymeric	1 mm	0.039 in	100 A	3.8 A	0.984 "	25 mm	0.199 in			24 V	85 °C	-40 C	1.8 A	Strap	5.05 mm
Bourns Inc. MF-LS260S	cURus TUV	User Defined	76 mOhms	25 mOhms	Polymeric	1 mm	0.039 in	100 A	5.2 A	0.984 "	25 mm	0.447 "	11.35 mm	5 s	24 V	85 °C	-40 C	2.6 A	Strap
