R14115 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

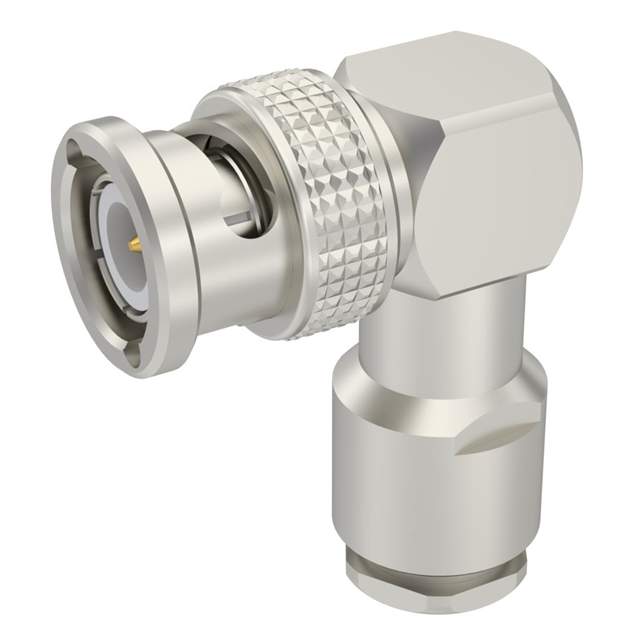

BNC M RA CL 5/50
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Shield Termination | Mounting Type | Housing Color | Frequency - Max [Max] | Number of Ports | Contact Termination | Impedance | Center Contact Material | Connector Style | Connector Type | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | -65 ░C | 165 °C | Nickel | Gold | Polytetrafluoroethylene (PTFE) | Brass | 500 | Clamp | Free Hanging (In-Line) Right Angle | Silver | 4 GHz | 1 | Crimp | 50 Ohms | Beryllium Copper Brass | BNC | Plug Male Pin | Bayonet Lock | 141 142 223 400 RG-58 |
 Radiall USA, Inc. | 500 V | -65 ░C | 165 °C | Nickel | Gold | Polytetrafluoroethylene (PTFE) | Brass | Clamp | Free Hanging (In-Line) Right Angle | Silver | 4 GHz | 1 | Solder | 50 Ohms | Brass | BNC | Plug Male Pin | Bayonet Lock | 179 316 316DS RG-174 |
