KFB04512 Series
Manufacturer: Delta Electronics
Beta
⌘K

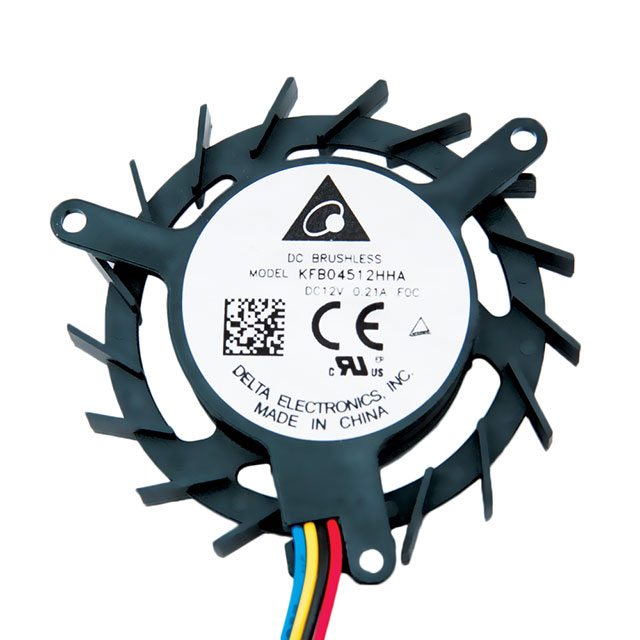

FAN IMP MTR 49X10.8MM 12VDC
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Approval Agency | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Air Flow | Air Flow | Fan Type | RPM | Noise | Size / Dimension [diameter] | Size / Dimension | Weight | Weight | Width [y] | Power (Watts) | Static Pressure | Static Pressure | Voltage - Rated | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 40 °C 50000 Hrs | 0.18 A | 5 VDC | 12.5 VDC | CE cURus TUV | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | 70 °C | -10 °C | 4.3 CFM | 0.12 m³/min | Frameless Motorized Impellers | 5000 RPM | 28.5 dB | 49 mm | Round | 0.034 lb | 15.42 g | 10.8 mm | 2.16 W | 0.171 in H2O | 42.6 Pa | 12 VDC | Ball |
