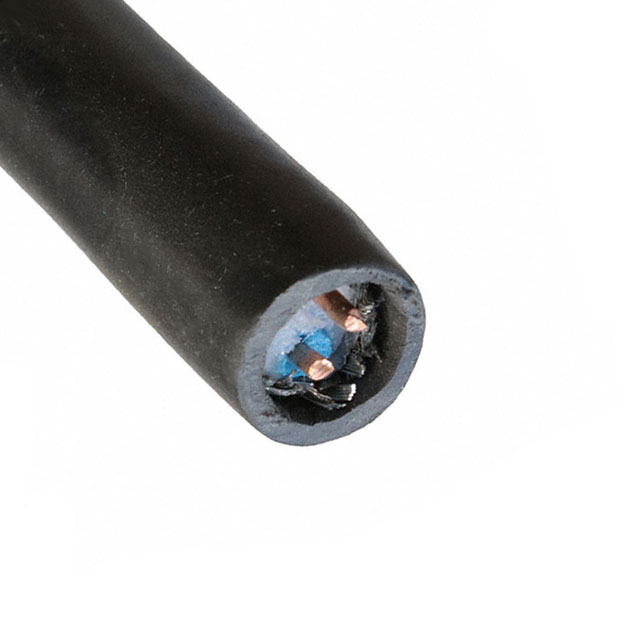

M4158 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE MULTI CONDUCTOR 16AWG 100'
| Part | Shield Material | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | VoP, Velocity of Propagation | Jacket Color | Wire Gauge | Length | Length | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Conductor Strand | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | Copper Bare | -20 ░C | 60 °C | 90 % 100 % | 78 | Black | 16 AWG | 100 ' | 30.48 m | Braid Foil | Poly-Vinyl Chloride (PVC) | 11.18 mm | 0.44 " | 124 Ohms | Solid | Multi-Conductor |
