7410-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

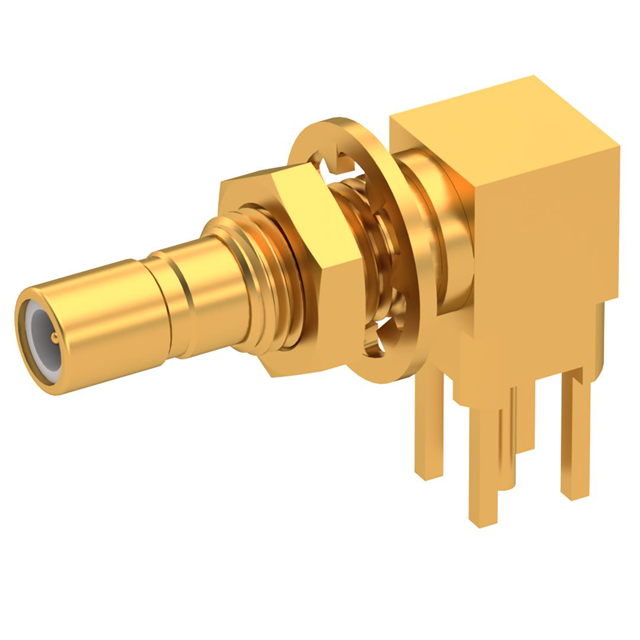

SSMB M RA BHD
| Part | Includes | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Body Finish | Voltage Rating | Housing Color | Mounting Feature | Number of Ports | Mounting Type | Contact Termination | Connector Type | Center Contact Material | Impedance | Connector Style | Shield Termination | Frequency - Max [Max] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 250 V | Gold | Bulkhead - Front Side Nut | 1 | Panel Mount Right Angle Through Hole | Solder | Jack Male Pin | Beryllium Copper | 50 Ohms | SSMB | Solder | 12.4 GHz | Snap-On |
Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Brass | Gold | 250 V | Gold | Bulkhead - Front Side Nut | 1 | Panel Mount Right Angle Through Hole | Solder | Jack Male Pin | Beryllium Copper | 50 Ohms | SSMB | Solder | 12.4 GHz | Snap-On |
