SM14B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

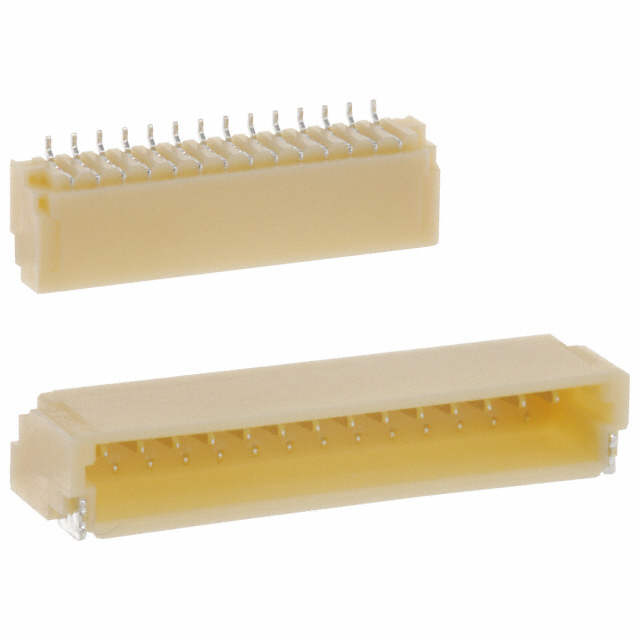

CONN HEADER SMD R/A 14POS 1MM
| Part | Contact Material | Insulation Material | Insulation Color | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish - Post | Insulation Height | Insulation Height | Contact Shape | Shrouding | Fastening Type | Connector Type | Features | Contact Type | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Voltage Rating | Number of Positions Loaded | Style | Number of Rows | Contact Finish - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | Nylon Polyamide (PA) | Natural | 14 | 85 °C | -25 °C | Right Angle Surface Mount | Tin | 0.114 in | 2.9 mm | Square | Shrouded - 4 Wall | Push-Pull | Header | Solder Retention | Male Pin | Solder | 1 mm | 0.039 in | UL94 V-0 | 50 V | All | Board to Cable/Wire | 1 | ||
JST Sales America Inc. | Copper Alloy | Nylon Polyamide (PA) | Natural | 14 | 85 °C | -25 °C | Right Angle Surface Mount | 0.114 in | 2.9 mm | Square | Shrouded - 4 Wall | Push-Pull | Header | Solder Retention | Male Pin | Solder | 1 mm | 0.039 in | UL94 V-0 | 50 V | All | Board to Cable/Wire | 1 | Gold | 0.7 A |
