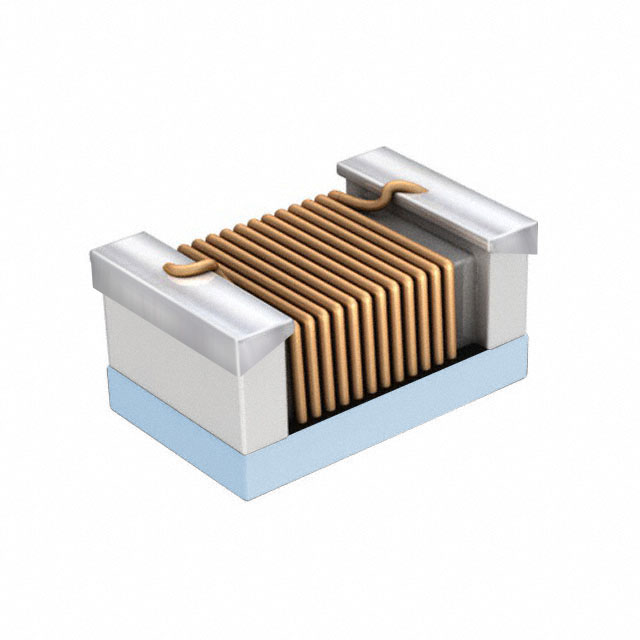

0402HC Series

Manufacturer: Delta Electronics/Components

Catalog

FIXED IND 3.4NH 900MA 40MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Package / Case	Frequency - Self Resonant	Current Rating (Amps)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Inductance	Inductance Frequency - Test	Shielding	Q @ Freq [custom]	Q @ Freq [custom]
Delta Electronics/Components 0402HC-3N4ECTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.2 nH	250 MHz	30	40 mOhm	0402 (1005 Metric)	12 GHz	900 mA	Drum Core Wirewound	-55 C	125 °C	0402	3.4 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-2N2ECTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.2 nH	250 MHz		27 mOhm	0402 (1005 Metric)	14 GHz	1 A	Drum Core Wirewound	-55 C	125 °C	0402		100 MHz	Unshielded	25
Delta Electronics/Components 0402HC-1N3ECTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.2 nH			17 mOhm	0402 (1005 Metric)	16 GHz	1.2 A	Drum Core Wirewound	-55 C	125 °C	0402	1.3 nH	100 MHz	Unshielded	20	250 MHz
Delta Electronics/Components 0402HC-5N6ECTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.2 nH	250 MHz	30	51 mOhm	0402 (1005 Metric)	8 GHz	800 mA	Drum Core Wirewound	-55 C	125 °C	0402	5.6 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-5N1EDTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.5 nH	250 MHz	30	51 mOhm	0402 (1005 Metric)	8 GHz	800 mA	Drum Core Wirewound	-55 C	125 °C	0402	5.1 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-5N6EDTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.5 nH	250 MHz	30	51 mOhm	0402 (1005 Metric)	8 GHz	800 mA	Drum Core Wirewound	-55 C	125 °C	0402	5.6 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-3N3EDTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.5 nH	250 MHz	30	40 mOhm	0402 (1005 Metric)	12 GHz	900 mA	Drum Core Wirewound	-55 C	125 °C	0402	3.3 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-5N1ECTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.2 nH	250 MHz	30	51 mOhm	0402 (1005 Metric)	8 GHz	800 mA	Drum Core Wirewound	-55 C	125 °C	0402	5.1 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-3N4EDTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.5 nH	250 MHz	30	40 mOhm	0402 (1005 Metric)	12 GHz	900 mA	Drum Core Wirewound	-55 C	125 °C	0402	3.4 nH	100 MHz	Unshielded
Delta Electronics/Components 0402HC-6N0EDTS	0.6 mm	0.024 in	Surface Mount	Ceramic	0.024 "	1.1 mm	0.6 mm	0.043 in	0.5 nH	250 MHz	30	56 mOhm	0402 (1005 Metric)	7.7 GHz	760 mA	Drum Core Wirewound	-55 C	125 °C	0402	6 nH	100 MHz	Unshielded
