LCB400 Series

Catalog

COPPER COMPRESSION LUG, 1 HOLE, 400 KCMI

Part	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Finish	Contact Material	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Wire Gauge	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Termination	Color	Terminal Type	Mounting Type	Terminal Style	Diameter - Ring ID	Diameter - Ring ID
Panduit Corp LCB400-38-6	19.3 mm	0.76 in	10.41 mm	0.41 "	Electro-Tin	Copper	0.95 in	24.13 mm	400 MCM	Non-Insulated	1.39 "	35.31 mm	0.18 in	4.57 mm	108.46 mm	4.27 in	0.375 Stud	Barrel Crimp	Blue	Rectangular Tongue	Free Hanging (In-Line)	Single Stud Hole
Panduit Corp LCB400-38H-6	19.3 mm	0.76 in	10.41 mm	0.41 "	Electro-Tin	Copper	0.95 in	24.13 mm	400 MCM	Non-Insulated	1.39 "	35.31 mm	0.18 in	4.57 mm			0.375 Stud	Barrel Crimp	Blue	Rectangular Tongue	Free Hanging (In-Line)	Single Stud Hole

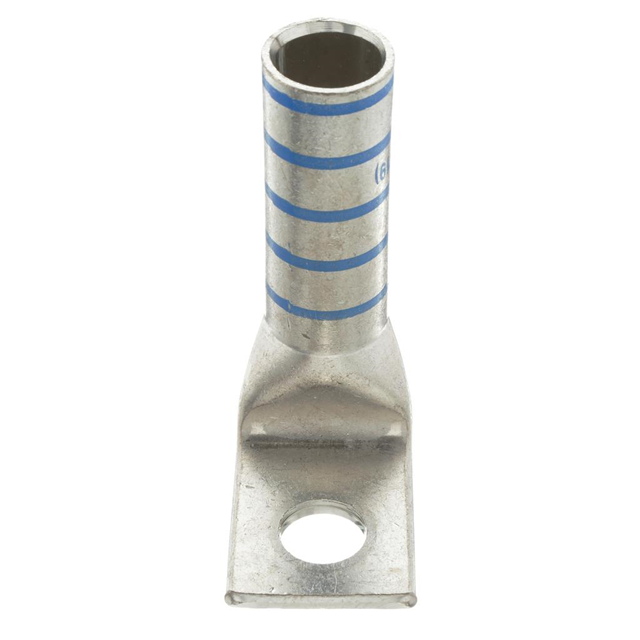

Panduit Corp LCB400-58F-6	19.3 mm	0.76 in	16.76 mm	0.66 in	Electro-Tin	Copper	0.95 in	24.13 mm	400 MCM	Non-Insulated	1.39 "	35.31 mm	0.18 in	4.57 mm			0.625 Stud	Barrel Crimp	Blue	Rectangular Tongue	Free Hanging (In-Line) Right Angle	Single Stud Hole
Panduit Corp LCB400-58H-6	19.3 mm	0.76 in	16.76 mm	0.66 in	Electro-Tin	Copper	0.95 in	24.13 mm	400 MCM	Non-Insulated	1.39 "	35.31 mm	0.18 in	4.57 mm			0.625 Stud	Barrel Crimp	Blue	Rectangular Tongue	Free Hanging (In-Line)	Single Stud Hole
Panduit Corp LCB400-12F-6
Panduit Corp LCB400-12H-6	19.3 mm	0.76 in			Electro-Tin	Copper	0.95 in	24.13 mm	400 MCM	Non-Insulated	1.39 "	35.31 mm	0.18 in	4.57 mm			0.5 Stud	Barrel Crimp	Blue	Rectangular Tongue	Free Hanging (In-Line)	Single Stud Hole	13.46 mm	0.53 in
