LCBS-TM Series

Catalog

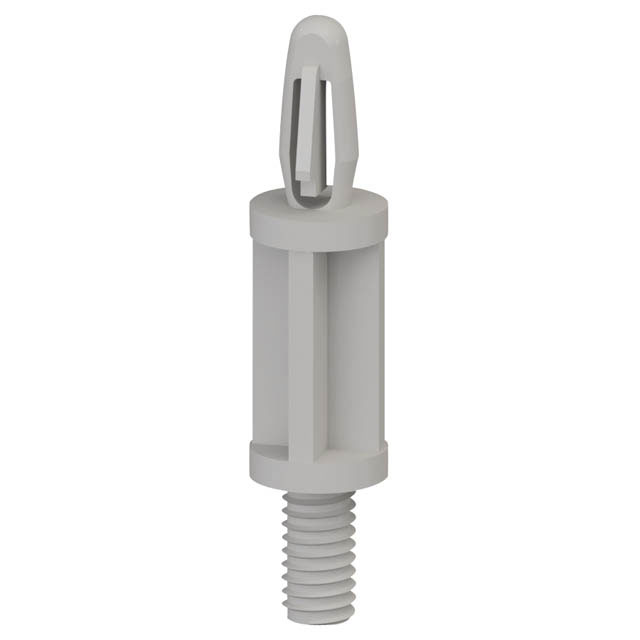

BRD SPT SNAP LOCK THR STUD 5/8"

Part	Material	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Features	Holding Type	Mounting Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Length - Overall
Essentra Components LCBS-TM-10-01	Nylon	33.7 mm	1.327 in	3.99 mm	0.157 "	6-32 Thread	Snap Lock	Threaded Stud	1.57 mm	0.062 in	0.0625 in	15.88 mm	0.625 in	5 8
Essentra Components LCBS-TM-16-01	Nylon		1.701 in	3.99 mm	0.157 "	6-32 Thread	Snap Lock	Threaded Stud	1.57 mm	0.062 in	0.0625 in	25.4 mm	1 in		43.2 mm
Essentra Components LCBS-TM-4-01	Nylon	24.21 mm	0.953 in	3.99 mm	0.157 "	6-32 Thread	Snap Lock	Threaded Stud	1.57 mm	0.062 in	0.0625 in	0.25 in	6.35 mm
Essentra Components LCBS-TM-10-19	Nylon	33.7 mm	1.327 in	3.99 mm	0.157 "	6-32 Thread	Snap Lock	Threaded Stud	1.57 mm	0.062 in	0.0625 in	15.88 mm	0.625 in	5 8
Essentra Components LCBS-TM-8-19	Nylon	30.5 mm	1.201 in	3.99 mm	0.157 "	6-32 Thread	Snap Lock	Threaded Stud	1.57 mm	0.062 in	0.0625 in	12.7 mm	0.5 in	0.5 in
