R7S910016 Series

Equipped with a management data input / output interface (MDIO). Ideal for applications such as optical modules

Manufacturer: Renesas Electronics Corporation

Catalog

Equipped with a management data input / output interface (MDIO). Ideal for applications such as optical modules

Part	Speed	Core Processor	Program Memory Type	Number of I/O	Supplier Device Package	Core Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Oscillator Type	Package / Case	Data Converters [custom]	Data Converters [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	RAM Size	Connectivity

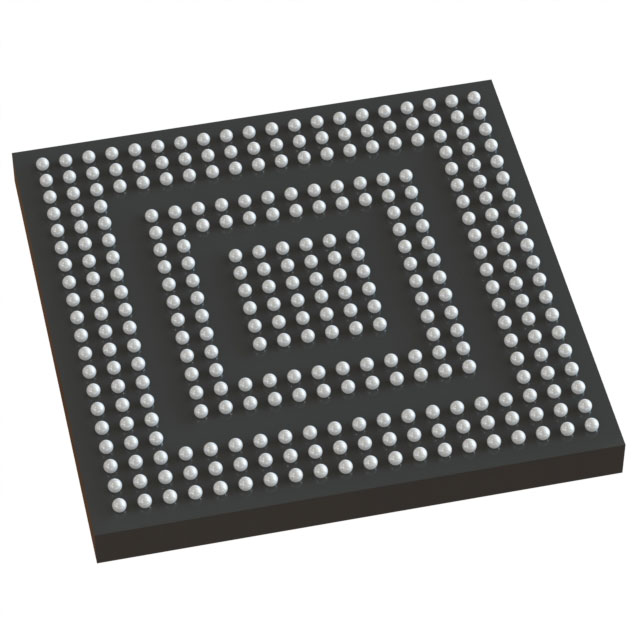

Renesas Electronics Corporation R7S910027CBA#BC0	600 MHz	ARM® Cortex®-R4F	ROMless	209	320-LFBGA (17x17)	32-Bit	3.6 V	1.14 V	DMA PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 ¯C	1 M	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB

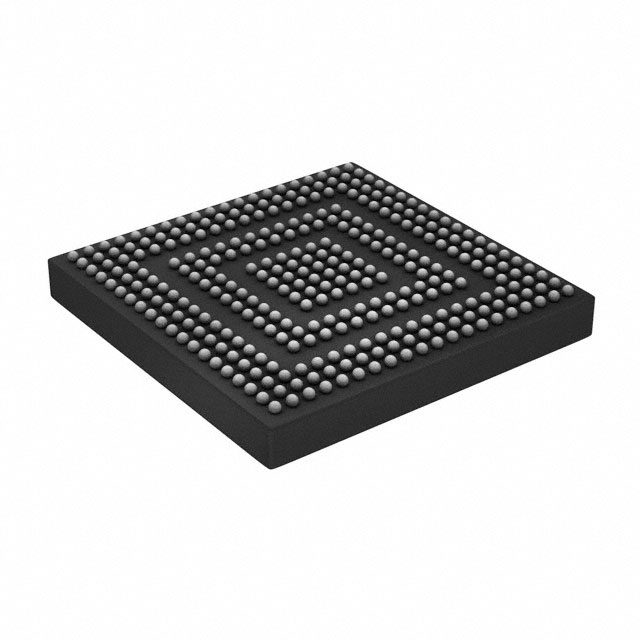

Renesas Electronics Corporation R7S910016CBG#AC0	450 MHz	ARM® Cortex®-R4F	ROMless	209	320-FBGA (17x17)	32-Bit Single-Core	3.6 V	1.14 V	DMA POR PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 °C	1.5 M	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910035CBA#BC0	300 MHz	ARM® Cortex®-R4F	ROMless	209	320-LFBGA (17x17)	32-Bit	3.6 V	1.14 V	DMA PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 ¯C		CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910011CBG#AC0	450 MHz	ARM® Cortex®-R4F	ROMless	209	320-FBGA (17x17)	32-Bit Single-Core	3.6 V	1.14 V	DMA POR PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 °C	1.5 M	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910035CBG#AC0	300 MHz	ARM® Cortex®-R4F	ROMless	209	320-FBGA (17x17)	32-Bit Single-Core	3.6 V	1.14 V	DMA POR PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 °C	544 K	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910016CBA#BC0	450 MHz	ARM® Cortex®-R4F	ROMless	209	320-LFBGA (17x17)	32-Bit	3.6 V	1.14 V	DMA PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 ¯C	1 M	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910020CBG#AC0	450 MHz	ARM® Cortex®-R4F	ROMless	51	112-FBGA (6x6)	32-Bit	3.6 V	1.14 V	DMA POR PWM WDT	Internal	112-LFBGA	12 b	16	Surface Mount	-40 °C	110 °C		CSI I2C SPI UART/USART
Renesas Electronics Corporation R7S910015CBA#BC0	450 MHz	ARM® Cortex®-R4F	ROMless	209	320-LFBGA (17x17)	32-Bit	3.6 V	1.14 V	DMA PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 ¯C	1 M	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910036CBG#AC0	300 MHz	ARM® Cortex®-R4F	ROMless	209	320-FBGA (17x17)	32-Bit Single-Core	3.6 V	1.14 V	DMA POR PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 °C	544 K	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB
Renesas Electronics Corporation R7S910013CBG#AC0	600 MHz	ARM® Cortex®-R4F	ROMless	209	320-FBGA (17x17)	32-Bit Single-Core	3.6 V	1.14 V	DMA POR PWM WDT	Internal	320-FBGA	12	24	Surface Mount	-40 °C	125 °C	1.5 M	CANbus CSI EBI/EMI Ethernet I2C SPI UART/USART USB

Catalog

Equipped with a management data input / output interface (MDIO). Ideal for applications such as optical modules

Description

The RZ/T1-M group has the Arm® Cortex®-R4 Processor with FPU designed for real-time processing, capable of high-speed operation at up to 450 MHz. And by equipped with the MDIO interface, The RZ/T1-M group is ideal for applications such as optical modules. 6 x 6mm small package contributes to space saving.
