25013 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

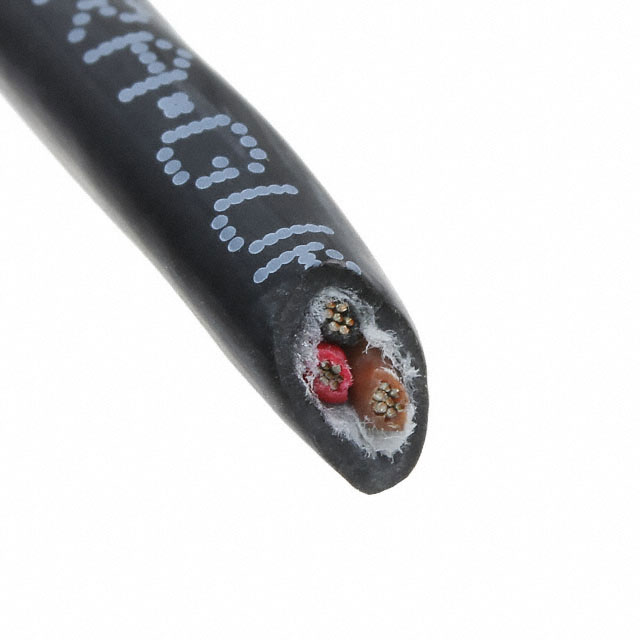

CABLE 3COND 24AWG BLACK 100'
| Part | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket (Insulation) Material | Conductor Material | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] | Voltage | Jacket Color | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Biological Compatibility Rip Cord | 0.163 in | 4.14 mm | -30 ░C | 90 °C | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | 24 AWG | Polyurethane (PU) | Copper Tinned | Multi-Conductor | 7 | 32 AWG | 3 | 100 ft | 30.5 m | 300 VDC | Black | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | Biological Compatibility Rip Cord | 0.163 in | 4.14 mm | -30 ░C | 90 °C | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | 24 AWG | Polyurethane (PU) | Copper Tinned | Multi-Conductor | 7 | 32 AWG | 3 | 300 VDC | Slate | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
