1981823 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

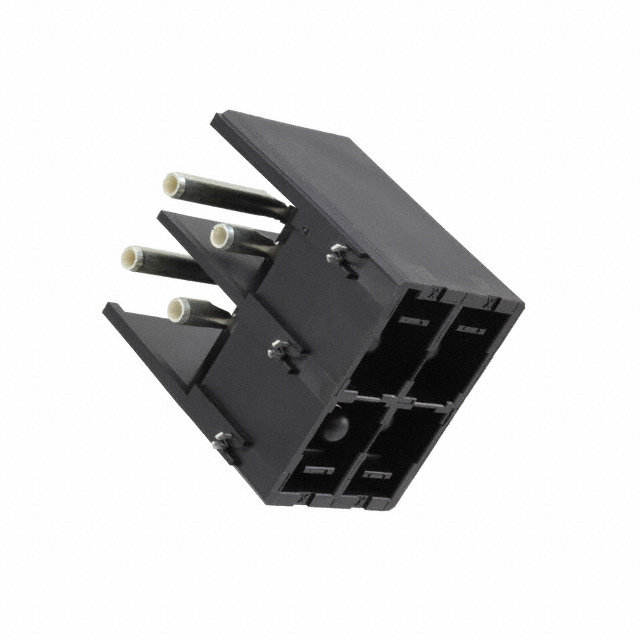

CONN HEADER R/A 4POS 16MM
| Part | Voltage Rating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Number of Rows | Contact Type | Number of Positions Loaded | Current Rating (Amps) | Contact Shape | Applications | Material Flammability Rating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Style | Contact Finish - Post | Connector Type | Insulation Material | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 630 V | Through Hole Right Angle | 0.63 in | 16 mm | 0.63 in | 16 mm | Detent Lock | Copper Alloy | 0.181 in | 4.6 mm | 35 mm | 1.378 in | 2 | Male Pin | All | 65 A | Circular | General Purpose Industrial | UL94 V-0 | Shrouded - 4 Wall | 2.54 çm | 100 çin | 4 | Board to Cable/Wire | Tin | Header | Glass Filled Polyester Thermoplastic | Silver | Solder |
