LSR1-04 Series

Catalog

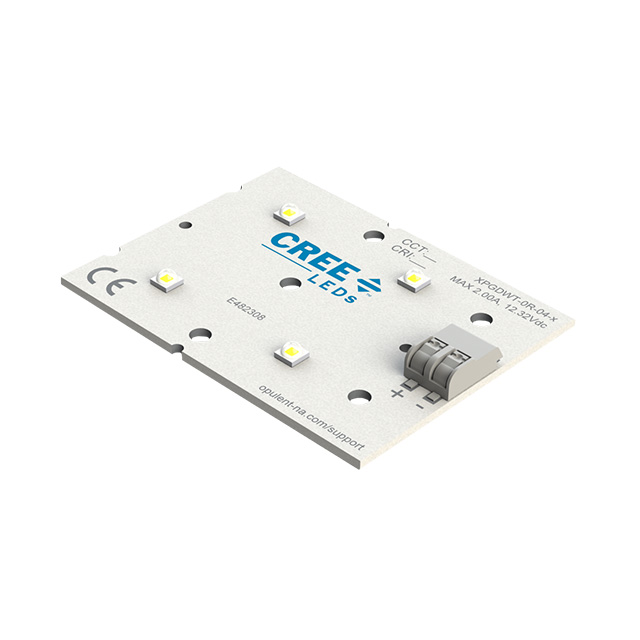

LED MOD XP-G3 WM WHT RECT 3000K

Part	Color	Configuration	Lens Type	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Height [z]	Lumens/Watt @ Current - Test	Type	CRI (Color Rendering Index)	Current - Test	Luminous Flux @ Current/Temperature	Temperature - Test	CCT (K)	CCT (K)
New Energy LSR1-04C32-3070-00	Warm White	Rectangle	Flat	2 A	45.01 mm	59.59 mm	10.92 V	1.52 mm	163 lm/W	LED Module	70	350 mA	624 lm	85 °C	3000 K	5-Step MacAdam Ellipse
New Energy LSR1-04C32-5080-00	Cool White	Rectangle	Flat	2 A	45.01 mm	59.59 mm	10.92 V	1.52 mm	163 lm/W	LED Module	80	350 mA	624 lm	85 °C	5000 K	5-Step MacAdam Ellipse
New Energy LSR1-04C32-5770-00	Cool White	Rectangle	Flat	2 A	45.01 mm	59.59 mm	10.92 V	1.52 mm	171 lm/W	LED Module	70	350 mA	656 lm	85 °C	5700 K
New Energy LSR1-04C32-2780-00	Warm White	Rectangle	Flat	2 A	45.01 mm	59.59 mm	10.92 V	1.52 mm	145 lm/W	LED Module	80	350 mA	556 lm	85 °C	2700 K	5-Step MacAdam Ellipse
New Energy LSR1-04C32-4080-00	Neutral White	Rectangle	Flat	2 A	45.01 mm	59.59 mm	10.92 V	1.52 mm	155 lm/W	LED Module	80	350 mA	592 lm	85 °C	4000 K
New Energy LSR1-04C32-3080-00	Warm White	Rectangle	Flat	2 A	45.01 mm	59.59 mm	10.92 V	1.52 mm	145 lm/W	LED Module	80	350 mA	556 lm	85 °C	3000 K	5-Step MacAdam Ellipse
New Energy LSR1-04C32-5070-00	Cool White	Rectangle	Domed	2 A	45.01 mm	59.59 mm	10.92 V		171 lm/W	LED Module	70	350 mA	656 lm	85 °C	5000 K	5-Step MacAdam Ellipse
New Energy LSR1-04C32-2790-00	Warm White	Rectangle	Domed	2 A	45.01 mm	59.59 mm	10.92 V		119 lm/W	LED Module	90	350 mA	456 lm	85 °C	2700 K	5-Step MacAdam Ellipse
New Energy LSR1-04C32-4070-00	Neutral White	Rectangle	Domed	2 A	45.01 mm	59.59 mm	10.92 V		171 lm/W	LED Module	70	350 mA	656 lm	85 °C	4000 K
