1241.6824 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSH BUTTON N.O./N.C. DPST ROUND BUTTON 12A 250VAC 125VDC PANEL MOUNT QUICK CONNECT BOX
| Part | Electrical Life | Mechanical Life | Actuator Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Voltage Rating - DC | Voltage Rating - AC | Illumination Voltage (Nominal) | Ingress Protection | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Termination Style | Switch Function | Actuator Marking | Mounting Type | Circuit | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

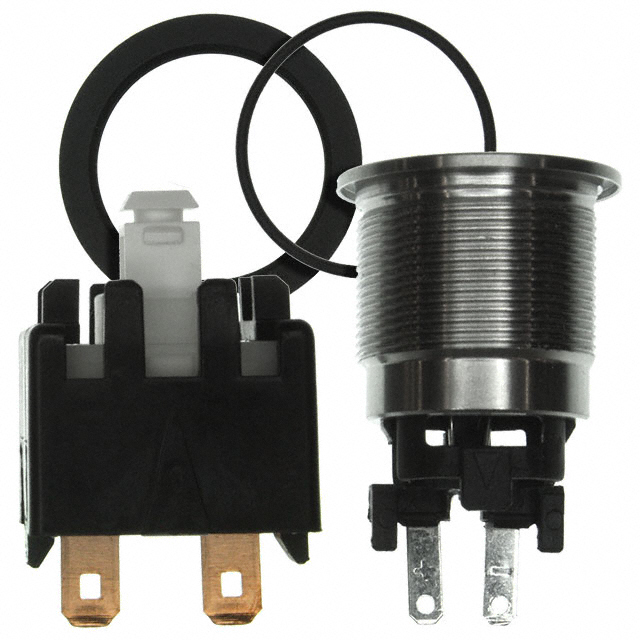

 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | Button Round | Anti-Vandal Illuminated | 85 °C | -20 ░C | Green LED | 30 V | 250 V | 24 V | IP64 - Dust Tight Water Resistant | 19.1 mm | 12 A | Quick Connect | Off-On | No Marking | Panel Mount Front | DPST | Silver |

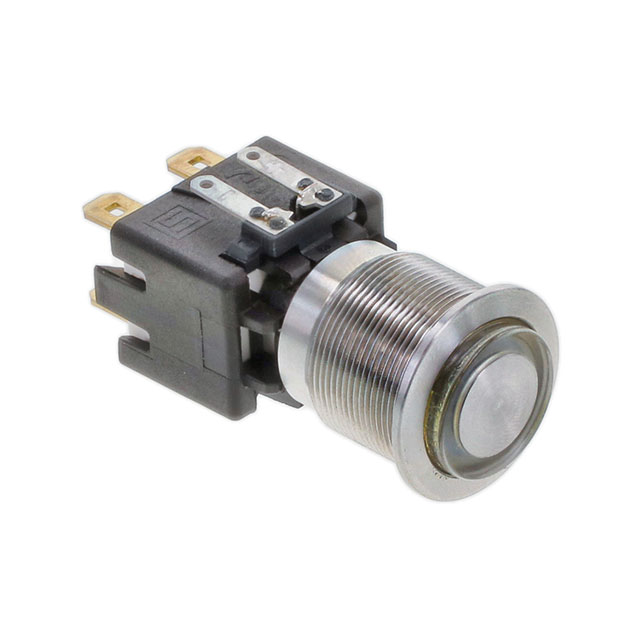

 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | Button Round | Anti-Vandal Illuminated | 85 °C | -20 ░C | Blue LED | 30 V | 250 V | 24 V | IP64 - Dust Tight Water Resistant | 19.1 mm | 12 A | Quick Connect | Off-On | No Marking | Panel Mount Front | SPST | Silver |

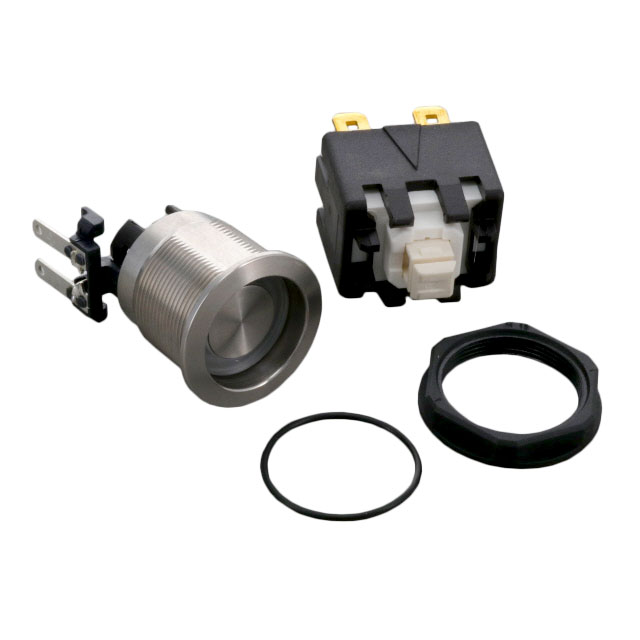

 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | Button Round | Anti-Vandal Illuminated | 85 °C | -20 ░C | Blue LED | 30 V | 250 V | 24 V | IP64 - Dust Tight Water Resistant | 19.1 mm | 12 A | Quick Connect | Off-On | No Marking | Panel Mount Front | DPST | Silver |
