MP1529 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
IC LED DRV RGLTR PWM 16QFN

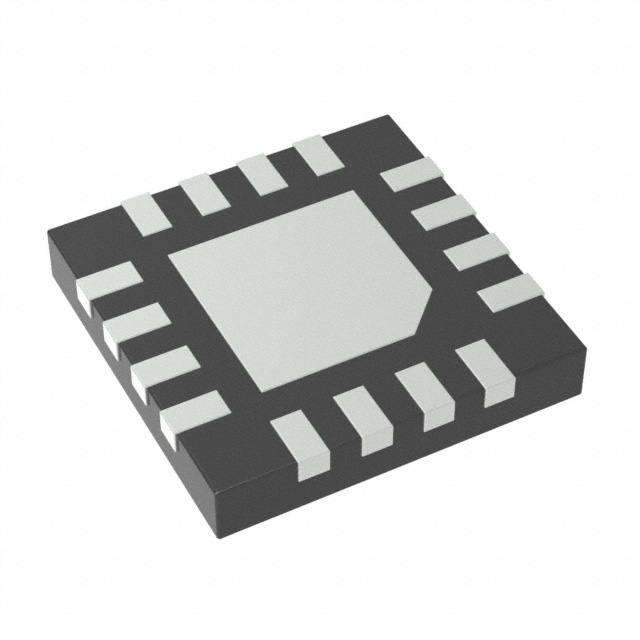

| Part | Topology | Supplier Device Package | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Dimming | Current - Output / Channel | Voltage - Supply (Min) [Min] | Internal Switch(s) | Voltage - Supply (Max) [Max] | Frequency | Type | Package / Case | Voltage - Output | Applications | Mounting Type | Features | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Step-Up (Boost) | 16-QFN (4X4) | 3 | 85 C | -40 ¯C | PWM | 30 mA 150 mA | 2.7 V | 5.5 V | 1.2 MHz | DC DC Regulator | 16-VQFN Exposed Pad | 25 V | Backlight Camera Flash | Surface Mount | |||||||
 Monolithic Power Systems Inc. | 100 mA | Dimmable | 4.2 V | 2.7 V | 1 Non-Isolated Output | Board(s) | MP1529 | |||||||||||||||
Monolithic Power Systems Inc. | Step-Up (Boost) | 16-QFN (4X4) | 3 | 85 C | -40 ¯C | PWM | 30 mA 150 mA | 2.7 V | 5.5 V | 1.2 MHz | DC DC Regulator | 16-VQFN Exposed Pad | 25 V | Backlight Camera Flash | Surface Mount |
