746-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 24POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Termination	Contact Type	Mounting Type	Color	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Card Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Positions	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Material	Termination Rows	Number of Rows

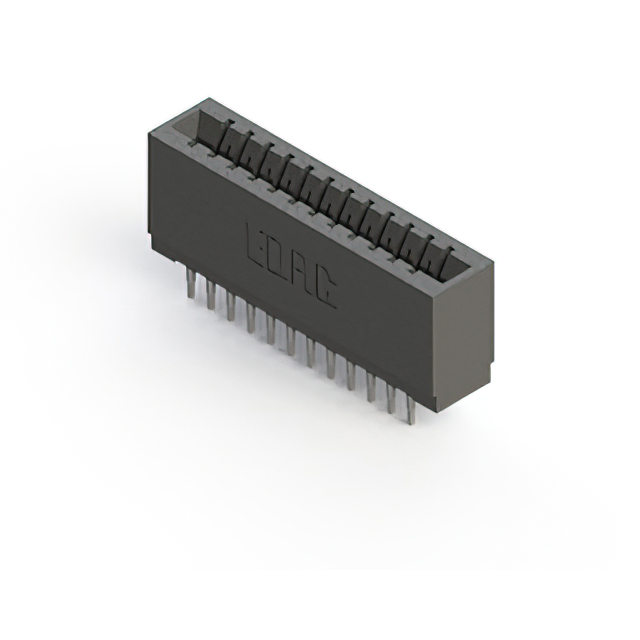

EDAC Inc. 746-024-553-601	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy

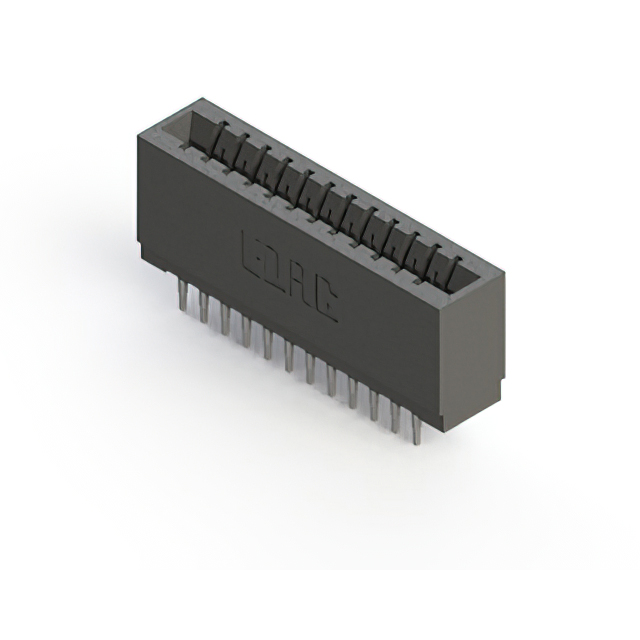

EDAC Inc. 746-024-540-601	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy

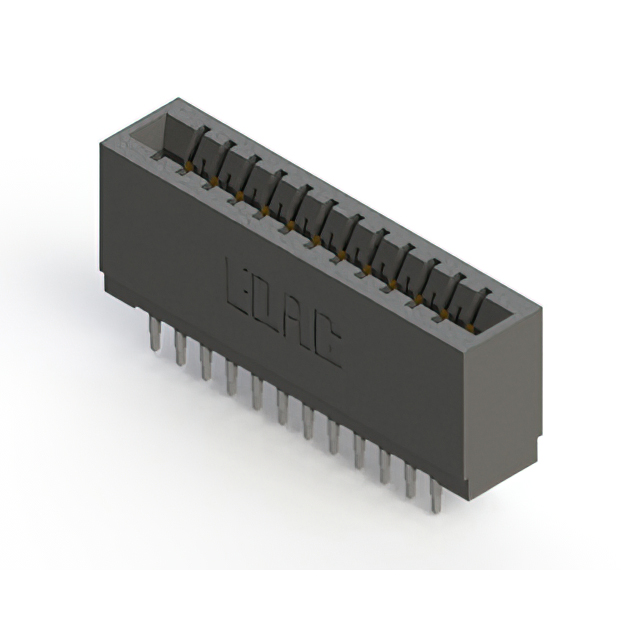

EDAC Inc. 746-024-525-201	2	Polyester Thermoplastic	Press-Fit	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy

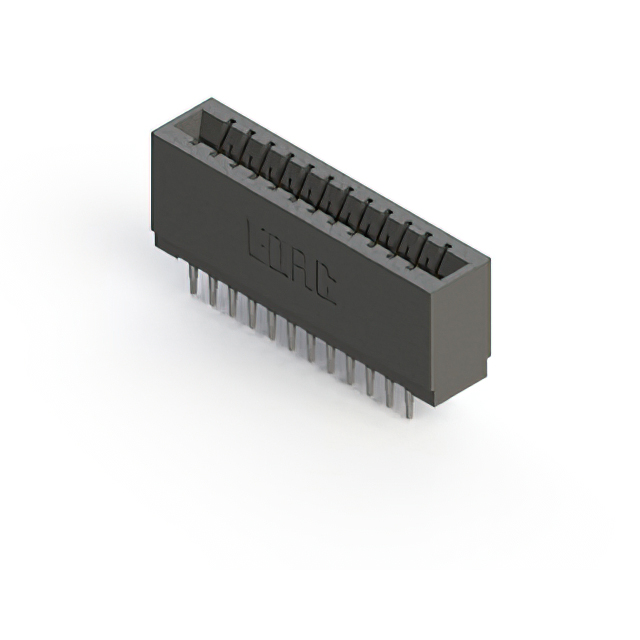

EDAC Inc. 746-024-541-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy
EDAC Inc. 746-024-525-501		Polyester Thermoplastic	Press-Fit	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Single	30 Áin	0.76 Ám		24	Copper Alloy	1	1
EDAC Inc. 746-024-540-206	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy
EDAC Inc. 746-024-520-106		Polyester Thermoplastic	Press-Fit	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Single	30 Áin	0.76 Ám		24	Copper Alloy	1	1
EDAC Inc. 746-024-545-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy
EDAC Inc. 746-024-540-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Dual	30 Áin	0.76 Ám	2	12	Copper Alloy

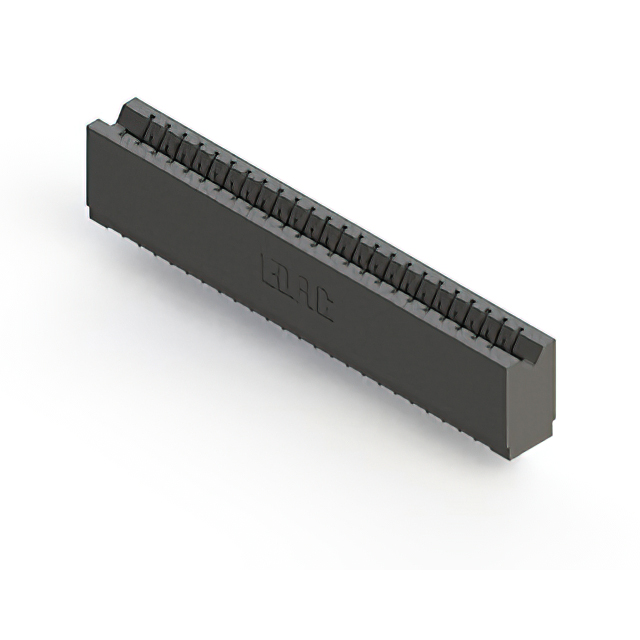

EDAC Inc. 746-024-540-506		Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	Through Hole	Black	3.18 mm	0.125 in	-40 C	105 ░C	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	24	Single	30 Áin	0.76 Ám		24	Copper Alloy	1	1
