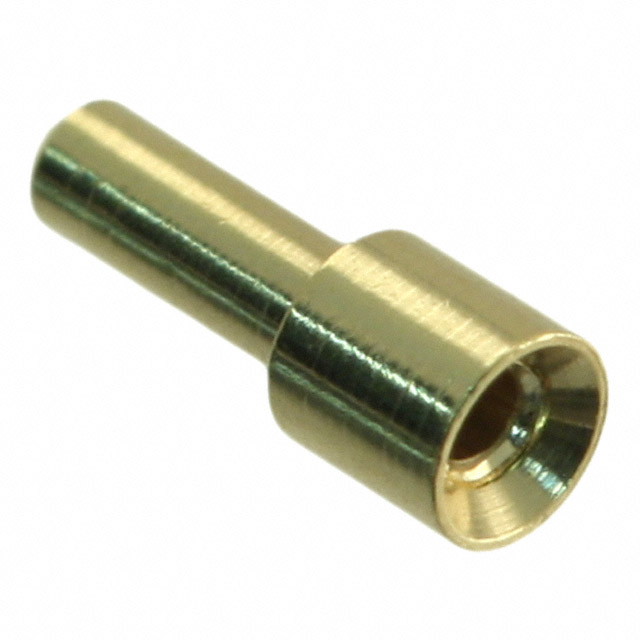

9548-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Termination	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter	Flange Diameter	Contact Material	Tail Type	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 9548-0-15-80-21-14-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	0.91 mm	0.036 in	Solder	Gold	0.031 in	0.79 mm	0.058 in	1.47 mm	Beryllium Copper	No Tail	3.94 mm	0.155 in	3.51 mm	0.138 in	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 9548-0-15-01-21-14-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	0.91 mm	0.036 in	Solder	Gold	0.031 in	0.79 mm	0.058 in	1.47 mm	Beryllium Copper	No Tail	3.94 mm	0.155 in	3.51 mm	0.138 in	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 9548-0-15-15-21-14-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	0.91 mm	0.036 in	Solder	Gold	0.031 in	0.79 mm	0.058 in	1.47 mm	Beryllium Copper	No Tail	3.94 mm	0.155 in	3.51 mm	0.138 in	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 9548-0-15-15-21-27-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	0.91 mm	0.036 in	Solder	Gold	0.031 in	0.79 mm	0.058 in	1.47 mm	Beryllium Copper	No Tail	3.94 mm	0.155 in	3.51 mm	0.138 in	0.76 Ám	30 Áin
