581 01 30 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
SKT CONNECTOR 30 POS
| Part | Note | Contact Type | Features | Mounting Type | Connector Type | Number of Positions | Number of Rows [custom] | Contact Termination | Color | Applications | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Ingress Protection | Style | Contact Material | Contact Finish - Mating | Number of Positions Loaded | Insulation Material | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Current Rating (Amps) | Shrouding | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Contacts Not Included | Female Socket | IP67 IP69K | Free Hanging (In-Line) | Receptacle | 30 | 3 | Crimp | Natural | ||||||||||||||||||

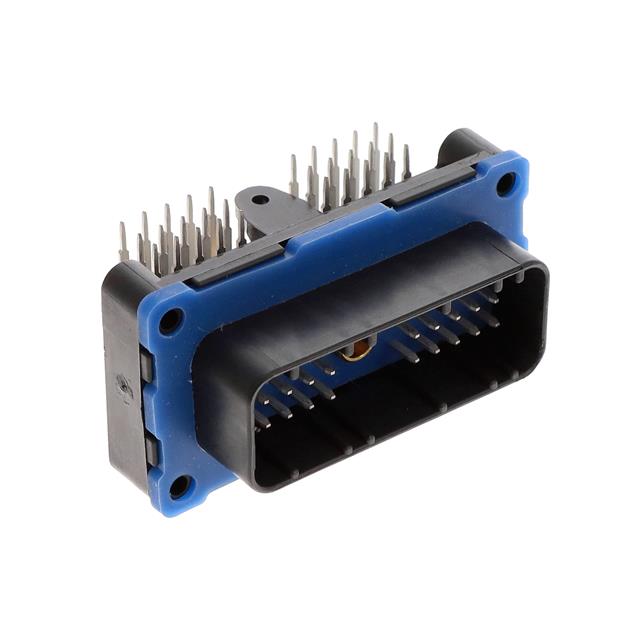

 Cinch Connectivity Solutions | Male Pin | Ferrite Filter | Right Angle Through Hole | Header | 30 | 3 | Automotive | Square | 0.166 in | 4.22 mm | Tin-Lead | IP67/IP69K | Board to Cable/Wire | Brass | Tin-Lead | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Threaded | 125 °C | -40 C | Solder | 10 A | Shrouded - 4 Wall | Gray | |||
Cinch Connectivity Solutions | Male Pin | Ferrite Filter | Panel Mount Right Angle Through Hole | Header | 30 | 3 | Automotive | Square | 0.166 in | 4.22 mm | Tin-Lead | IP67/IP69K | Board to Cable/Wire | Brass | Tin-Lead | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Threaded | 125 °C | -40 C | Solder | 10 A | Shrouded - 4 Wall | Black | |||
 Cinch Connectivity Solutions | Male Pin | Right Angle Through Hole | Header | 30 | 3 | Automotive | Square | 0.166 in | 4.22 mm | Tin-Lead | IP67/IP69K | Board to Cable/Wire | Brass | Tin-Lead | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Threaded | 125 °C | -40 C | Solder | 10 A | Shrouded - 4 Wall | Gray | ||||
 Cinch Connectivity Solutions | Male Pin | Right Angle Through Hole | Header | 30 | 3 | Automotive | Square | 0.166 in | 4.22 mm | Tin-Lead | IP67/IP69K | Board to Cable/Wire | Brass | Tin-Lead | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Threaded | 125 °C | -40 C | Solder | 10 A | Shrouded - 4 Wall | Black |
