503320 Series

Manufacturer: Molex

Catalog

0.25MM PITCH EASY-ON FPC CONNECTOR, 1.65MM MATED HEIGHT, RIGHT-ANGLE, SURFACE MOUNT, BOTTOM CONTACT STYLE, 37 CIRCUITS

Part	Housing Color	Actuator Color	Mating Cycles	Current Rating (Amps)	Connector/Contact Type	Housing Material	Number of Positions	Material Flammability Rating	Features	FFC, FCB Thickness [custom]	Voltage Rating	Locking Feature	Contact Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Flat Flex Type	Pitch	Pitch	Cable End Type	Termination	Actuator Material
Molex 5033203760	Beige	Black	10	0.3 A	Contacts Bottom	Glass Filled Liquid Crystal Polymer (LCP)	37	UL94 HB UL94 V-0	Solder Retention	0.2 mm	50 V	Flip Lock	Gold	Right Angle Surface Mount	85 °C	-40 C	Copper Alloy	FPC	0.01 in	0.25 mm	Tapered	Solder	Glass Filled Nylon Polyamide (PA)
Molex 5033204160	Beige	Black	10	0.3 A	Contacts Bottom	Glass Filled Liquid Crystal Polymer (LCP)	41	UL94 HB UL94 V-0	Solder Retention	0.2 mm	50 V	Flip Lock	Gold	Right Angle Surface Mount	85 °C	-40 C	Copper Alloy	FPC	0.01 in	0.25 mm	Tapered	Solder	Glass Filled Nylon Polyamide (PA)

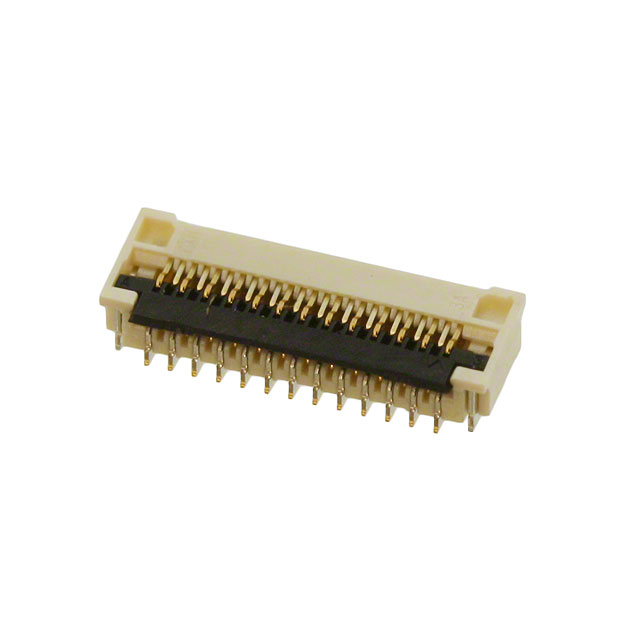

Molex 5033202560	Beige	Black	10	0.3 A	Contacts Bottom	Glass Filled Liquid Crystal Polymer (LCP)	25	UL94 HB UL94 V-0	Solder Retention	0.2 mm	50 V	Flip Lock	Gold	Right Angle Surface Mount	85 °C	-40 C	Copper Alloy	FPC	0.01 in	0.25 mm	Tapered	Solder	Glass Filled Nylon Polyamide (PA)
