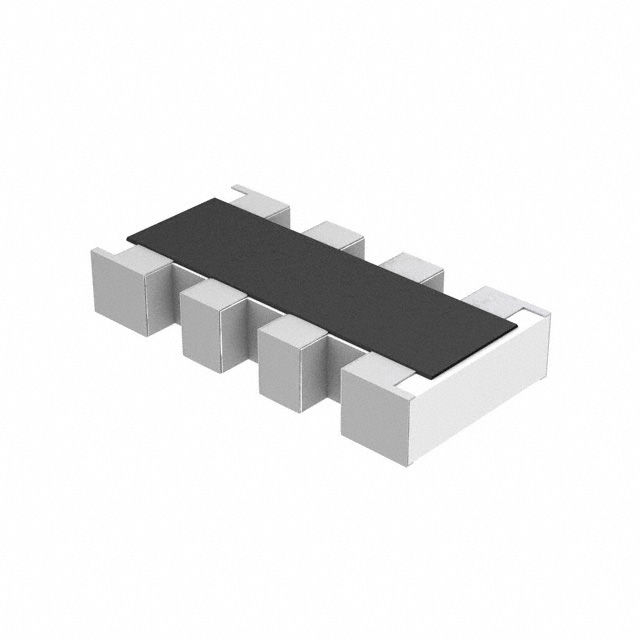

EXB-28 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES ARRAY 4 RES 8.2K OHM 0804
| Part | Resistance (Ohms) | Qualification | Circuit Type | Package / Case | Mounting Type | Temperature Coefficient | Number of Pins | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Number of Resistors | Grade | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 8.2 kOhms | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | |
Panasonic Industrial Automation Sales | 11 Ohms | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | |
Panasonic Industrial Automation Sales | 680 kOhms | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | |
Panasonic Industrial Automation Sales | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | 1.8k | |
Panasonic Industrial Automation Sales | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | ||
Panasonic Industrial Automation Sales | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | ||
Panasonic Industrial Automation Sales | 130 Ohms | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | |
Panasonic Industrial Automation Sales | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | 750k | |
Panasonic Industrial Automation Sales | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % | 120k | |
Panasonic Industrial Automation Sales | 2.7 Ohms | AEC-Q200 | Isolated | 0804 Convex Long Side Terminals | Surface Mount | 200 ppm/°C | 8 | 1 mm | 2 mm | 0.079 in | 0.039 " | 0804 | -55 °C | 125 °C | 0.45 mm | 0.018 " | 4 | Automotive | 5 % |
