ECW-F2474 Series

Catalog

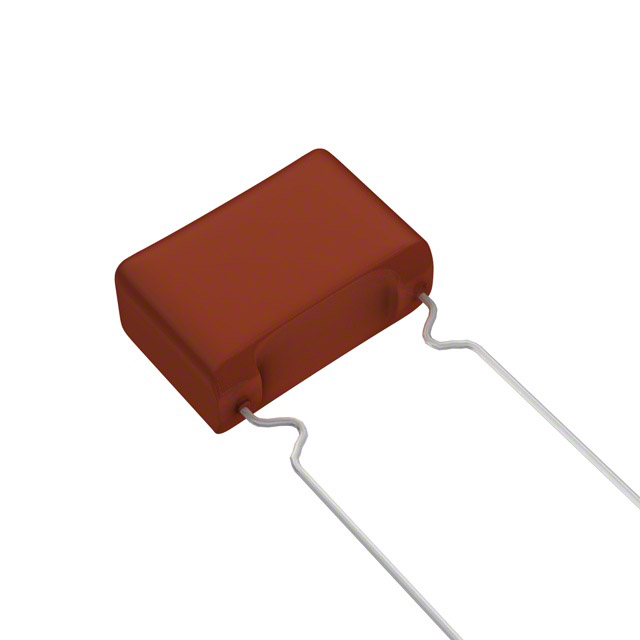

CAP FILM 0.47UF 3% 250VDC RADIAL

Part	Capacitance	Applications	Dielectric Material	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Lead Spacing	Lead Spacing	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECW-F2474HAQ	0.47 µF	High Frequency Switching	Metallized Polypropylene (PP)	250 V	-40 °C	105 ░C	Through Hole	0.394 in	10 mm	PC Pins	8.4 mm	13 mm	0.331 "	0.512 in	3 %	Radial
Panasonic Industrial Automation Sales ECW-F2474JAB	0.47 µF	High Frequency Switching	Metallized Polypropylene (PP)	250 V	-40 °C	105 ░C	Through Hole	0.295 in	7.5 mm	PC Pins	8.4 mm	13 mm	0.331 "	0.512 in	5 %	Radial
Panasonic Industrial Automation Sales ECW-F2474RHA	0.47 µF	High Frequency Switching	Metallized Polypropylene (PP)	250 V	-40 °C	105 ░C	Through Hole	0.295 in	7.5 mm	PC Pins	8.4 mm	13 mm	0.331 "	0.512 in	3 %	Radial
Panasonic Industrial Automation Sales ECW-F2474JB	0.47 µF	High Frequency Switching	Metallized Polypropylene (PP)	250 V	-25 °C	85 °C	Through Hole	0.787 in	20 mm	PC Pins	8 mm	23 mm	0.315 in	0.906 in	5 %	Radial	16.5 mm	16.51 mm
Panasonic Industrial Automation Sales ECW-F2474HAB	0.47 µF	High Frequency Switching	Metallized Polypropylene (PP)	250 V	-40 °C	105 ░C	Through Hole	0.295 in	7.5 mm	PC Pins	8.4 mm	13 mm	0.331 "	0.512 in	3 %	Radial
