140-505 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN, HEADER, 5POS, 1ROW, 2MM, SMT ROHS COMPLIANT: YES
| Part | Contact Shape | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Insulation Height | Insulation Height | Mounting Type | Contact Type | Style | Shrouding | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Features | Connector Type | Contact Material | Voltage Rating | Insulation Color | Fastening Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Rows | Note | Pitch [x] | Pitch [x] | Contact Termination | Color | Contact Length - Post [x] | Contact Length - Post | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

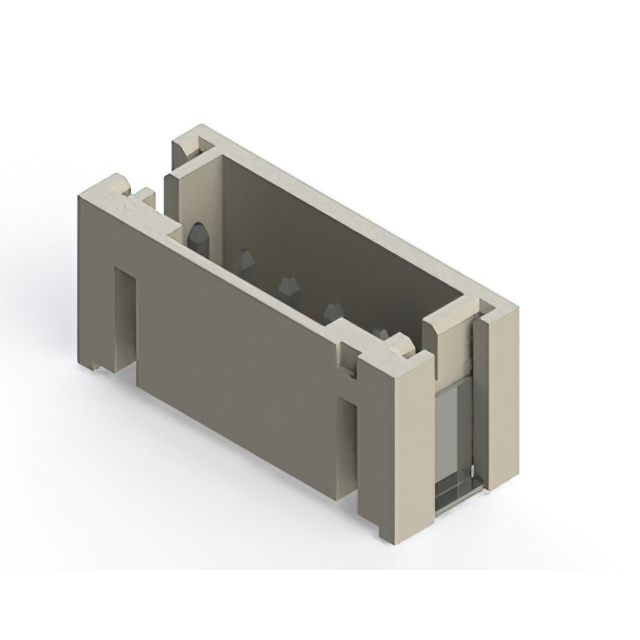

 EDAC Inc. | Square | UL94 V-0 | 2 A | 5 | 0.217 in | 5.51 mm | Surface Mount | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | 0.079 " | 2 mm | Tin | Solder Retention | Header | Brass | 100 VAC | Natural | Detent Lock | All | -40 C | 105 ░C | Solder | 1 | |||||||||

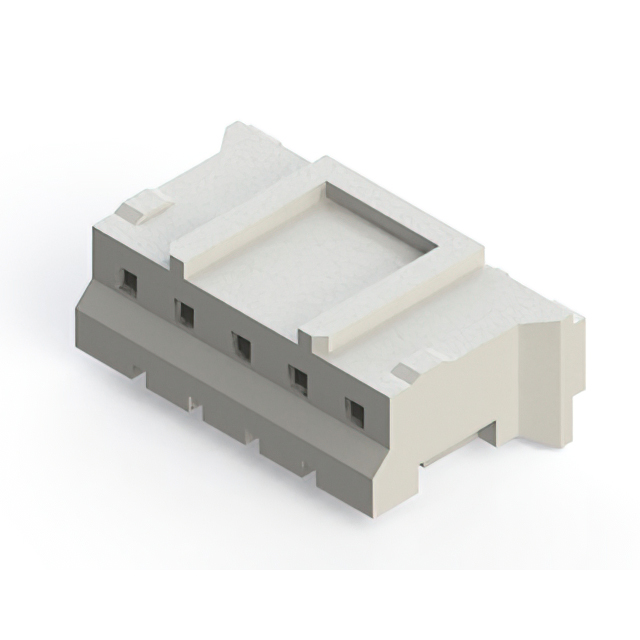

 EDAC Inc. | 5 | Free Hanging (In-Line) | Female Socket | Nylon 6/6 Polyamide (PA66) | Polarizing Key | Receptacle | Detent Lock | -25 °C | 85 °C | 1 | Contacts Not Included | 0.079 in | 2 mm | Crimp | Natural | |||||||||||||||||||

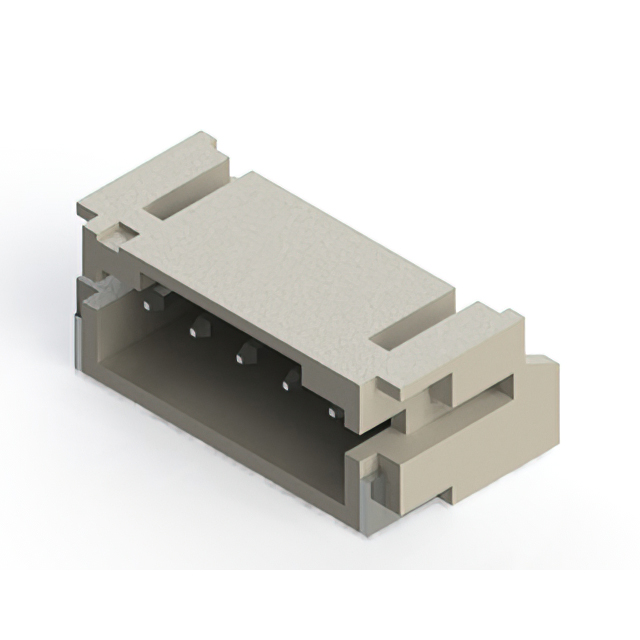

 EDAC Inc. | Square | UL94 V-0 | 2 A | 5 | 0.217 in | 5.51 mm | Right Angle Surface Mount | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | 0.079 " | 2 mm | Tin | Solder Retention | Header | Brass | 100 VAC | Natural | Detent Lock | All | -25 °C | 85 °C | Solder | 1 | |||||||||

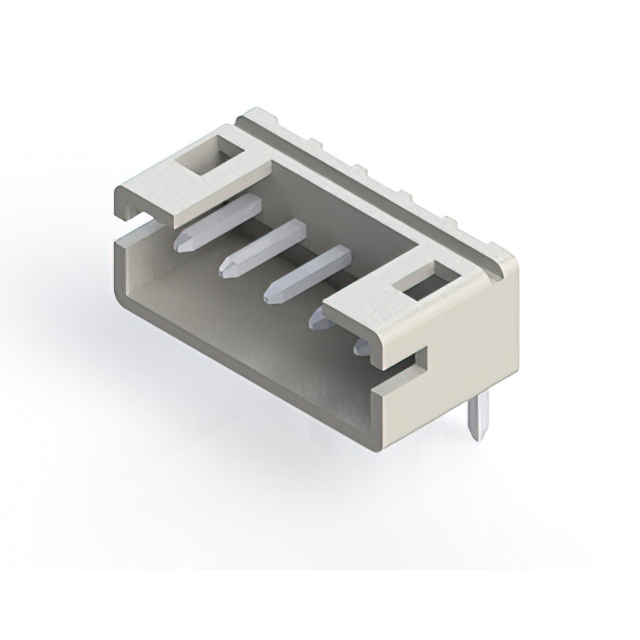

 EDAC Inc. | Square | UL94 V-0 | 2 A | 5 | Right Angle Through Hole | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | 0.079 " | 2 mm | Tin | Header | Brass | 100 VAC | Natural | Detent Lock | All | -40 C | 105 ░C | Solder | 1 | 0.134 " | 3.4 mm | 0.185 in | 4.7 mm | ||||||||

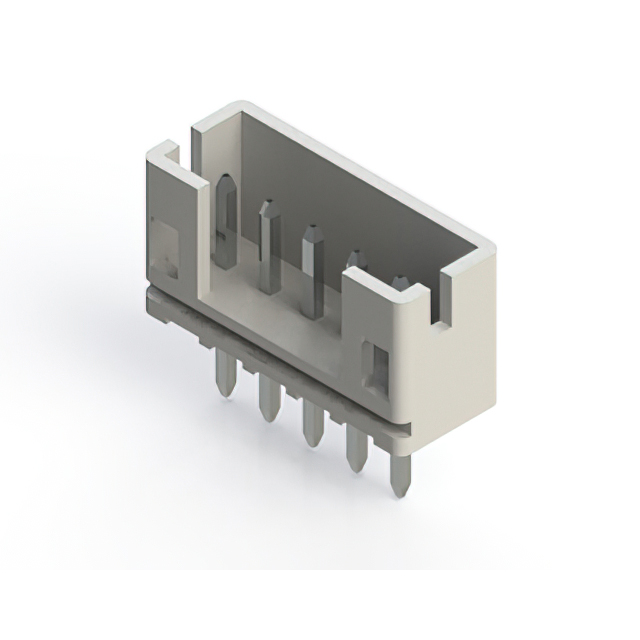

 EDAC Inc. | Square | UL94 V-0 | 2 A | 5 | Through Hole | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | 0.079 " | 2 mm | Tin | Header | Brass | 100 VAC | Natural | Detent Lock | All | -40 C | 105 ░C | Kinked Pin Solder | 1 | 0.134 " | 3.4 mm | 0.24 in | 6.1 mm | ||||||||
 EDAC Inc. | Square | UL94 V-0 | 2 A | 5 | Through Hole | Male Pin | Board to Cable/Wire | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | 0.079 " | 2 mm | Tin | Header | Brass | 100 VAC | Natural | Detent Lock | All | -40 C | 105 ░C | Solder | 1 | 0.24 in | 6.1 mm |
