684M3W3 Series
Manufacturer: NorComp Inc.
Beta
⌘K

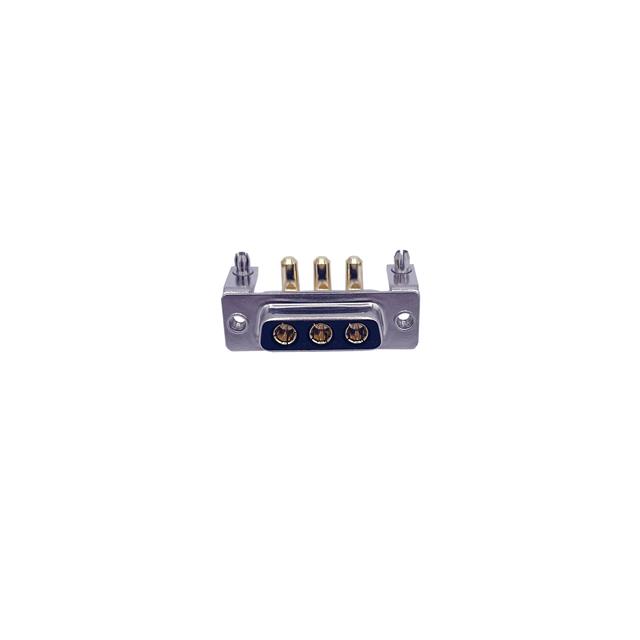

COMBO D-SUB CONN, RCPT, DA-3W3, TH ROHS COMPLIANT: YES
| Part | Contact Material | Dielectric Material | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Rows | Shell Material, Finish | Flange Feature | Flange Feature | Features | Connector Style | Mounting Type | Contact Type | Current Rating (Amps) | Contact Finish | Number of Positions | Contact Finish Thickness | Shell Size, Connector Layout | Material Flammability Rating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | 250 V | -55 C | 125 °C | Solder | 1 | Nickel Plated Steel | Housing/Shell | 4-40 | Board Lock Mounting Brackets | Combo D-Sub | Board Edge Right Angle Through Hole | Power | 40 A | Gold | 3 | Flash | 2 (DA A) - 3W3 | UL94 V-0 | Receptacle Female Sockets |
