1825955 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

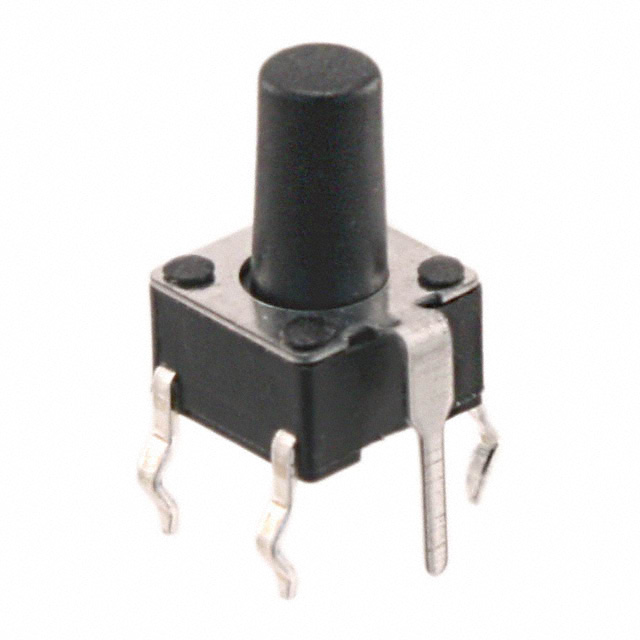

KEYPAD SWITCH, 1 SWITCHES, SPST, MOMENTARY, 0.05A, 24VDC, 3.04N, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT

Part	Features	Illumination	Mechanical Life	Actuator Height off PCB, Vertical [z]	Termination Style	Operating Force	Switch Travel [custom]	Actuator Orientation	Switch Function	Circuit	Outline [y]	Outline [x]	Actuator Type	Actuator Material	Mounting Type	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical
TE Connectivity Raychem Cable Protection 2-1825955-7	Grounding Pin	Non-Illuminated	100000 Cycles	13 mm	PC Pin	260 gf	0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Nylon 6/6 Polyamide (PA66)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C
TE Connectivity Raychem Cable Protection 1-1825955-8	Grounding Pin	Non-Illuminated	100000 Cycles	7.3 mm	PC Pin		0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Nylon 6/6 Polyamide (PA66)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C
TE Connectivity Raychem Cable Protection 3-1825955-2	Grounding Pin	Non-Illuminated	100000 Cycles	17 mm	PC Pin	520 gf	0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Nylon 6/6 Polyamide (PA66)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C
TE Connectivity Raychem Cable Protection 1-1825955-4	Grounding Pin	Non-Illuminated	100000 Cycles		PC Pin		0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Polybutylene Terephthalate (PBT)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C	9.5 mm
TE Connectivity Raychem Cable Protection 1-1825955-2	Grounding Pin	Non-Illuminated	100000 Cycles	7 mm	PC Pin	520 gf	0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Nylon 6/6 Polyamide (PA66)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C
TE Connectivity Raychem Cable Protection 3-1825955-1	Grounding Pin	Non-Illuminated	100000 Cycles	17 mm	PC Pin	260 gf	0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Nylon 6/6 Polyamide (PA66)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C
TE Connectivity Raychem Cable Protection 2-1825955-8	Grounding Pin	Non-Illuminated	100000 Cycles	13 mm	PC Pin	520 gf	0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Nylon 6/6 Polyamide (PA66)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C
TE Connectivity Raychem Cable Protection 1825955-6	Grounding Pin	Non-Illuminated	100000 Cycles		PC Pin		0.1 mm	Top Actuated	Off-Mom	SPST-NO	6 mm	6 mm	Standard	Polybutylene Terephthalate (PBT)	Through Hole	0.05 A 24 VDC	-35 °C	85 °C	5 mm
