TK1R5R04 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
MOSFET N-CH 40V 160A D2PAK
| Part | Supplier Device Package | Package / Case | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) | Drain to Source Voltage (Vdss) | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs | Mounting Type | Vgs(th) (Max) @ Id | Grade | Rds On (Max) @ Id, Vgs [Max] | Qualification | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) | Technology | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

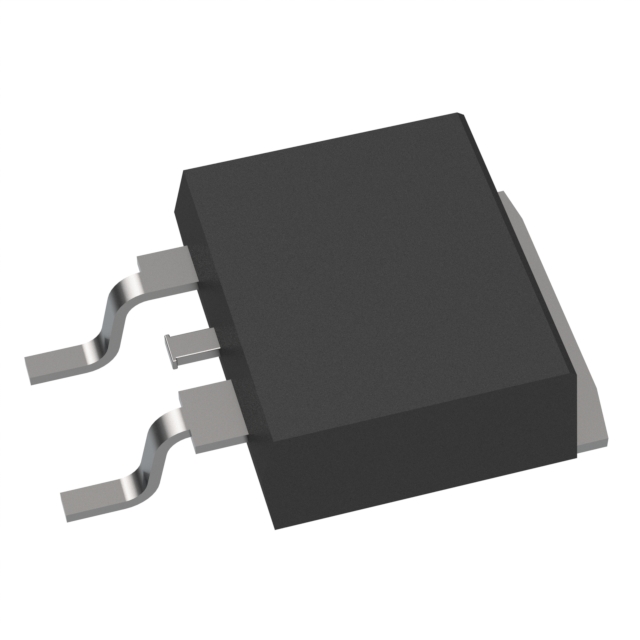

 Toshiba Semiconductor and Storage | D2PAK+ | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 175 °C | 5500 pF | 205 W | 40 V | 6 V 10 V | 103 nC | Surface Mount | 3 V | Automotive | 1.5 mOhm | AEC-Q101 | 160 A | 20 V | MOSFET (Metal Oxide) | N-Channel |
