SP1003-01DTG Series

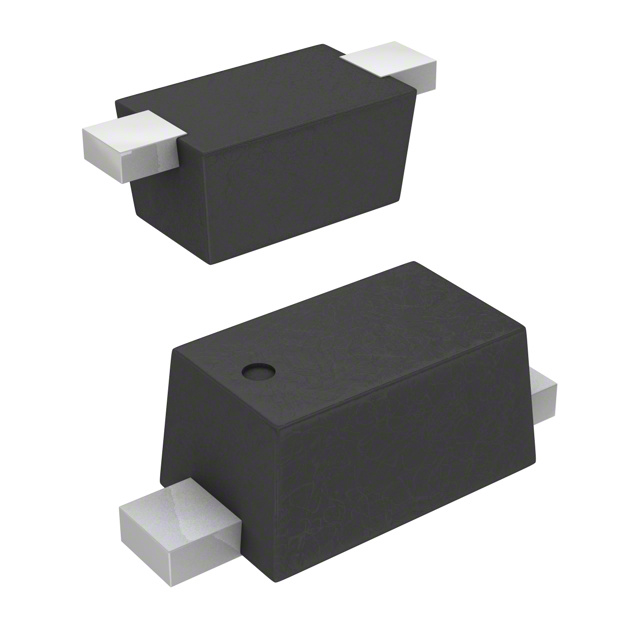

1 Ch 30KV 30pF TVS Diode Array SOD-723

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

1 Ch 30KV 30pF TVS Diode Array SOD-723

Part	Type	Power Line Protection	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Applications	Voltage - Breakdown (Min) [Min]	Mounting Type	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000çs)	Package / Case
Littelfuse/Commercial Vehicle Products SP1003-01DTG	Zener		SOD-723	5 V	General Purpose	6 V	Surface Mount	1	12 V	125 ¯C	-40 °C	7 A	SOD-723

Catalog

1 Ch 30KV 30pF TVS Diode Array SOD-723

Key Features

• ESD, IEC61000-4-2, ±30kV contact, ±30kV air

• EFT, IEC61000-4-4, 40A (5/50ns)

• Lightning, 7A (8/20 as defined in IEC 61000-4-5 2nd edition)

• Low leakage current of 100nA (MAX) at 5V

• Tiny SOD723/ SOD882 (JEDEC MO-236) package saves board space

• Fits solder footprint of industry standard 0402 (1005) components

• AEC-Q101 qualified (SOD882 package)

Description

The SP1003 diodes are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1003 TVS can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 7A of 8/20μs surge current (IEC 61000-4-5) with very low clamping voltages.
