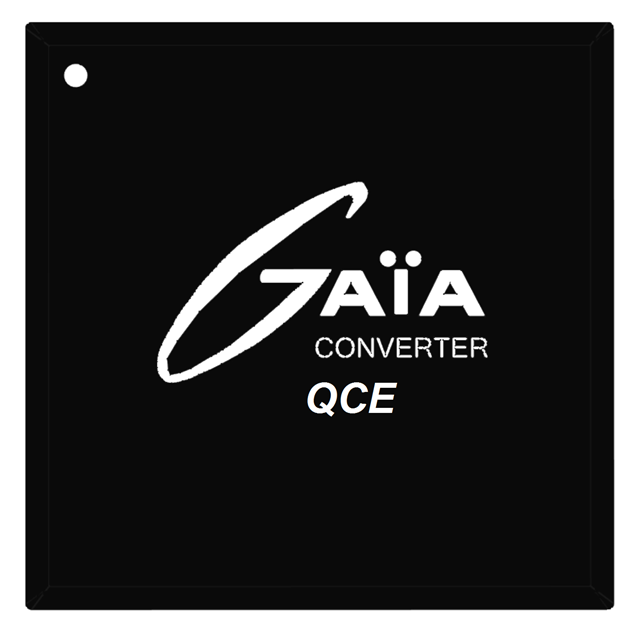

MGDSK25 Series
Manufacturer: Gaia Converter
Beta
⌘K
DC DC CONVERTER
| Part | Efficiency | Current - Output (Max) [Max] | Features | Voltage - Output 1 | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Applications | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Power (Watts) | Type | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Gaia Converter | 87 % | 6 A | Remote On/Off | 3.3 V | 1 | -40 C | 95 °C | Through Hole | 9 V | 36 V | ITE (Commercial) | 8-DIP Module | 2 in | 50.8 mm | 50.8 mm | 0.5 in | 12.7 mm | 2 in | 1.5 kV | 20 W | Isolated Module | |
Gaia Converter | 87 % | Remote On/Off | 5 V | 1 | -40 C | 95 °C | Through Hole | 16 V | ITE (Commercial) | 8-DIP Module | 2 in | 50.8 mm | 50.8 mm | 0.5 in | 12.7 mm | 2 in | 1.5 kV | 25 W | Isolated Module | 5 A | ||
Gaia Converter | 87 % | 1.67 A | Remote On/Off | 15 V | 1 | -40 C | 95 °C | Through Hole | 16 V | ITE (Commercial) | 8-DIP Module | 2 in | 50.8 mm | 50.8 mm | 0.5 in | 12.7 mm | 2 in | 1.5 kV | 25 W | Isolated Module | ||
Gaia Converter | 87 % | 2.1 A | Remote On/Off | 12 V | 1 | -40 C | 95 °C | Through Hole | 16 V | ITE (Commercial) | 8-DIP Module | 2 in | 50.8 mm | 50.8 mm | 0.5 in | 12.7 mm | 2 in | 1.5 kV | 25 W | Isolated Module |
