TPS7A7200 Series

2-A, low-VIN (1.43-V), ultra-low-dropout voltage regulator with power good & enable

Catalog

2-A, low-VIN (1.43-V), ultra-low-dropout voltage regulator with power good & enable

Part	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage Dropout (Max)	Protection Features	Output Type	Control Features	Package / Case	Number of Regulators	Current - Output	Mounting Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Supplier Device Package	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [y]	Supplier Device Package [x]	Board Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Channels per IC	Utilized IC / Part	Voltage - Output [Min]	Voltage - Output [Max]	Regulator Type	Contents
Texas Instruments TPS7A7200RGTT	5 V	0.9 V	0.47 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Adjustable (Fixed)	Enable Power Good Soft Start	16-VFQFN Exposed Pad	1	2 A	Surface Mount	4 mA	6.5 V	16-VQFN 3x3	Positive	125 °C	-40 C
Texas Instruments TPS7A7200RGWT	5 V	0.9 V	0.47 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Adjustable (Fixed)	Enable Power Good Soft Start	20-VQFN Exposed Pad	1	2 A	Surface Mount	4 mA	6.5 V	20-VQFN	Positive	125 °C	-40 C	5	5

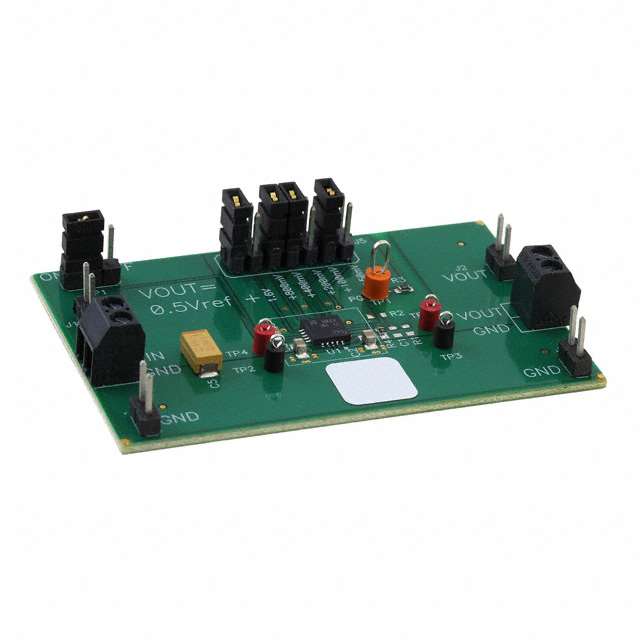

Texas Instruments TPS7A7200EVM-718									2 A										Fully Populated	Board(s)	1.5 V	6.5 V	1	TPS7A7200	0.9 V	3.3 V	Positive Adjustable	Board(s)
Texas Instruments TPS7A7200RGWR	5 V	0.9 V	0.47 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Adjustable (Fixed)	Enable Power Good Soft Start	20-VQFN Exposed Pad	1	2 A	Surface Mount	4 mA	6.5 V	20-VQFN	Positive	125 °C	-40 C	5	5
Texas Instruments TPS7A7200RGTR	5 V	0.9 V	0.47 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Adjustable (Fixed)	Enable Power Good Soft Start	16-VFQFN Exposed Pad	1	2 A	Surface Mount	4 mA	6.5 V	16-VQFN 3x3	Positive	125 °C	-40 C
Texas Instruments TPS7A7200QRGWREP	3.5 V	0.9 V	0.47 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Adjustable (Fixed)	Enable Power Good Soft Start	20-VQFN Exposed Pad	1	2 A	Surface Mount	4 mA	6.5 V	20-VQFN	Positive	125 °C	-40 C	5	5

Catalog

2-A, low-VIN (1.43-V), ultra-low-dropout voltage regulator with power good & enable

Description

The TPS7A7200 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (180 mV at 2 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7200 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7200 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7200 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages. The TPS7A7200 low-dropout (LDO) voltage regulator is designed for applications requiring very-low dropout capability (180 mV at 2 A) with an input voltage from 1.5 V to 6.5 V. The TPS7A7200 offers an innovative, user-configurable, output-voltage setting from 0.9 V to 3.5 V, thus eliminating external resistors and any associated errors. The TPS7A7200 has very fast load-transient response, is stable with ceramic output capacitors, and supports a better than 2% accuracy over line, load, and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, power-good signal allows for sequencing power rails. The TPS7A7200 is available in 3-mm × 3-mm, 16-pin VQFN and 5-mm × 5-mm, 20-pin VQFN packages.
