2SC6144SG Series

Bipolar Transistor, 50V, 10A, Low VCE(sat), NPN TO-220F-3FS

Catalog

Bipolar Transistor, 50V, 10A, Low VCE(sat), NPN TO-220F-3FS

Part	Supplier Device Package	Transistor Type	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Package / Case	Mounting Type	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Operating Temperature

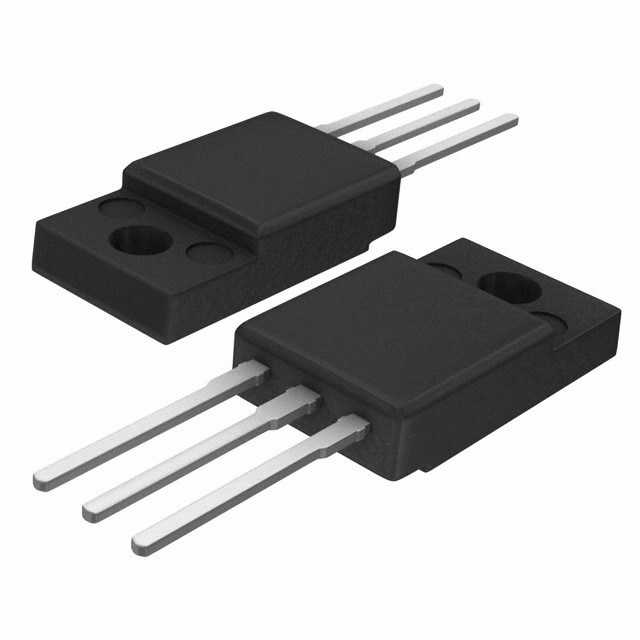

ON Semiconductor 2SC6144SG	TO-220F-3FS	NPN	360 mV	200	50 V	25 W	TO-220-3 Full Pack	Through Hole	10 µA	330 MHz	150 °C

Bipolar Transistor, 50V, 10A, Low VCE(sat), NPN TO-220F-3FS

• Adoption of MBIT process

• Low collector-to-emitter saturation voltage :VCE(sat)=180mV (typ)

• High-speed switching : tf=25ns (typ)

• Large current capacitance : IC=10A

2SC6144SG is a Bipolar Transistor, 50V, 10A, Low VCE(sat), NPN TO-220F-3FS for High-Current Switching Applications.
