1241.3244 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

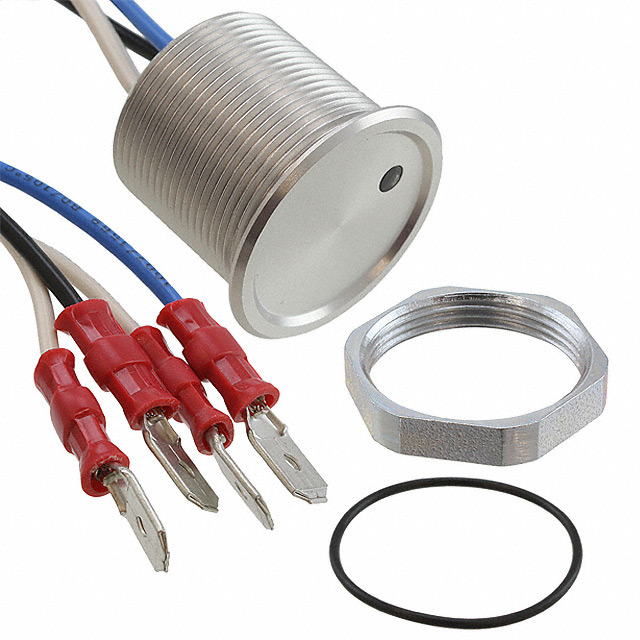

SWITCH PUSH SPST-NO 100MA 42V
| Part | Electrical Life | Switch Function | Color - Actuator/Cap | Circuit | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current Rating (Amps) | Actuator Type | Termination Style | Ingress Protection | Illumination Voltage (Nominal) | Actuator Marking | Illumination Type, Color | Voltage Rating - AC | Voltage Rating - DC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 20000000 Cycles | Off-Mom | Silver | SPST-NO | 22.3 mm | 85 °C | -40 C | Piezo | 100 mA | Button Flush Round | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | 2 VDC | No Marking | Blue LED | 42 V | 60 VDC | Panel Mount Front |
