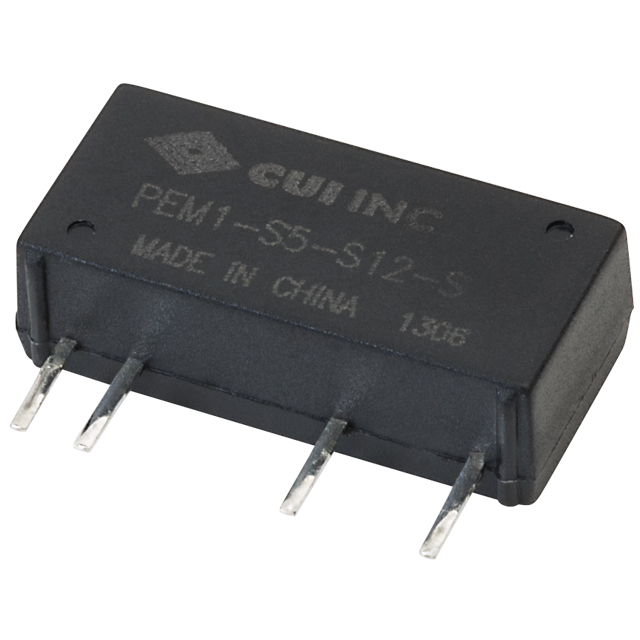

PEM1-S12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-5V 1W

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Approval Agency	Number of Outputs	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Mounting Type	Applications	Voltage - Input (Min) [Min]	Type	Voltage - Output 2	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Package / Case	Current - Output (Max) [Max]
CUI Inc. PEM1-S12-D5-S	SCP	-40 C	105 ░C	100 mA	100 mA	EN UL	2	5 V	80 %	13.2 V	Through Hole	ITE (Commercial)	10.8 V	Isolated Module	-5 V	55024 55032 Class A 60950-1	0.37 in	6 mm	0.24 "	9.3 mm	19.5 mm	0.77 in	3000 V	7-SIP Module 5 Leads
CUI Inc. PEM1-S12-S15-S	SCP	-40 C	105 ░C			CB Scheme EN IEC UL	1	15 V	81 %	13.2 V	Through Hole	ITE (Commercial)	10.8 V	Isolated Module		55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.37 in	6 mm	0.24 "	9.3 mm	19.5 mm	0.77 in	3000 V	7-SIP Module 4 Leads	67 mA
CUI Inc. PEM1-S12-S3-S	SCP	-40 C	105 ░C				1	3.3 V	75 %	13.2 V	Through Hole	ITE (Commercial)	10.8 V	Isolated Module			0.37 in	6 mm	0.24 "	9.3 mm	19.5 mm	0.77 in	3000 V	7-SIP Module 4 Leads	303 mA
