T 3260 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG HSNG MALE 3POS INLINE

Part	Shielding	Shell Material	Mounting Type	Fastening Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Shell Finish	Connector Type	Contact Shape	Orientation	Features	Note	Insert Material	Material Flammability Rating	Housing Color	Shell Size - Insert	Contact Type	Ingress Protection	Color	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Voltage Rating
Amphenol Tuchel Industrial T 3260 552	Shielded	Die Cast	Free Hanging (In-Line)	Threaded	For Male Pins	-40 C	100 °C	1.5 mm	Nickel	Plug Housing	Circular	Keyed	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Thermoplastic	UL94 V-0	Black Silver	M16-3	Crimp	IP40
Amphenol Tuchel Industrial T 3260 013	Shielded	Die Cast	Free Hanging (In-Line)	Threaded		-40 C	100 °C		Nickel	Plug Male Pins		Keyed	Strain Relief					M16-3		IP40	Silver	Silver	Metal	10 A	250 V

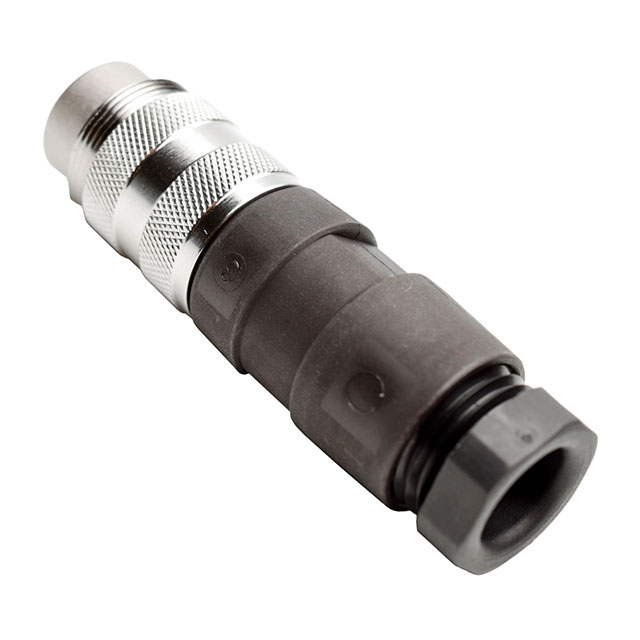

Amphenol Tuchel Industrial T 3260 002	Shielded	Die Cast	Free Hanging (In-Line)	Threaded		-40 C	100 °C		Nickel	Plug Male Pins		Keyed	Cable Clamp Strain Relief					M16-3		IP40	Silver	Silver	Metal	10 A	250 V
Amphenol Tuchel Industrial T 3260 048	Shielded	Die Cast	Free Hanging (In-Line)	Threaded		-40 C	100 °C		Nickel	Plug Male Pins		Keyed	Cable Clamp Strain Relief					M16-3		IP40	Silver	Gold	Metal	10 A	250 V

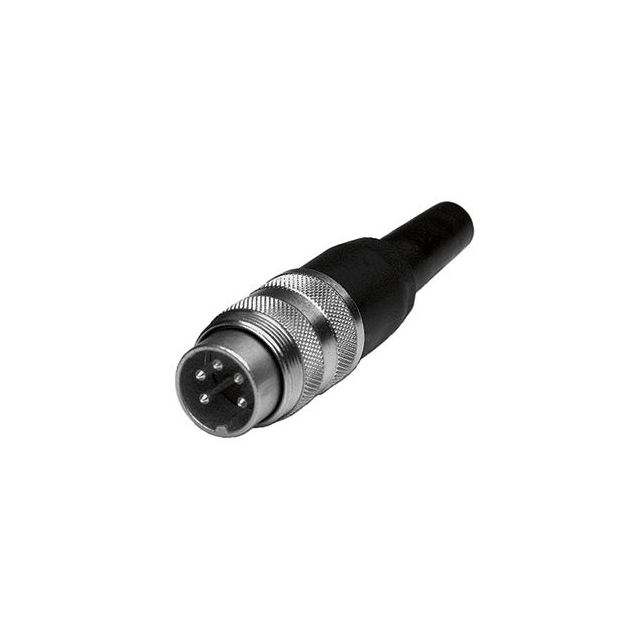

Amphenol Tuchel Industrial T 3260 551	Shielded	Die Cast	Free Hanging (In-Line)	Threaded	For Male Pins	-40 C	100 °C	1.5 mm	Nickel	Plug Housing	Circular	Keyed	Cable Clamp Coupling Nut Strain Relief	Contacts Not Included	Thermoplastic	UL94 V-0	Silver	M16-3	Crimp	IP40
Amphenol Tuchel Industrial T 3260 004	Shielded	Die Cast	Free Hanging (In-Line)	Threaded		-40 C	100 °C		Nickel	Plug Male Pins		Keyed	Cable Clamp Strain Relief					M16-3		IP40	Silver	Silver	Metal	10 A	250 V
Amphenol Tuchel Industrial T 3260 028	Shielded	Die Cast	Free Hanging (In-Line)	Threaded		-40 C	100 °C		Nickel	Plug Male Pins		Keyed	Cable Clamp Strain Relief					M16-3		IP40	Silver	Gold	Metal	10 A	250 V
