623-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

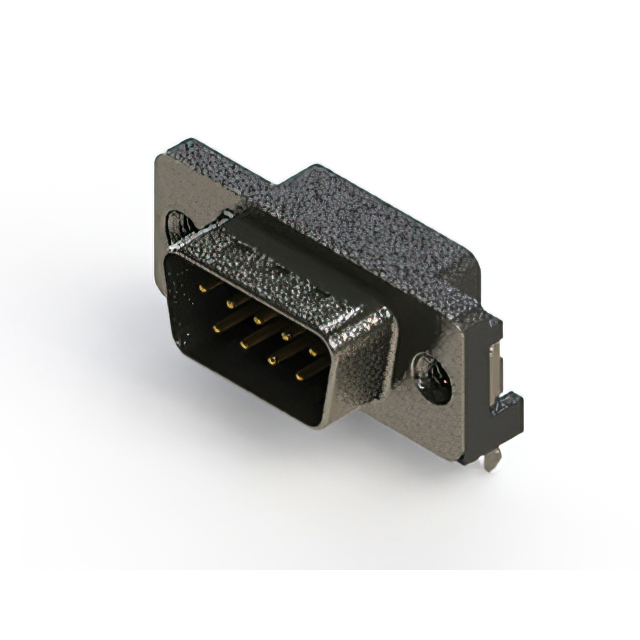

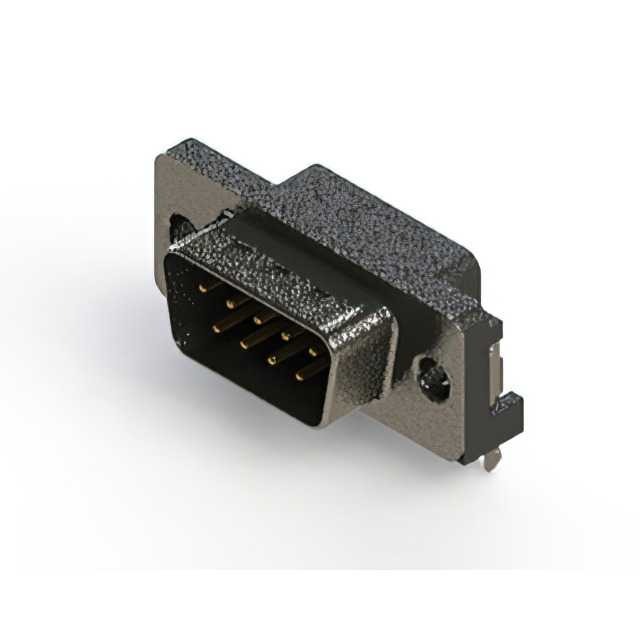

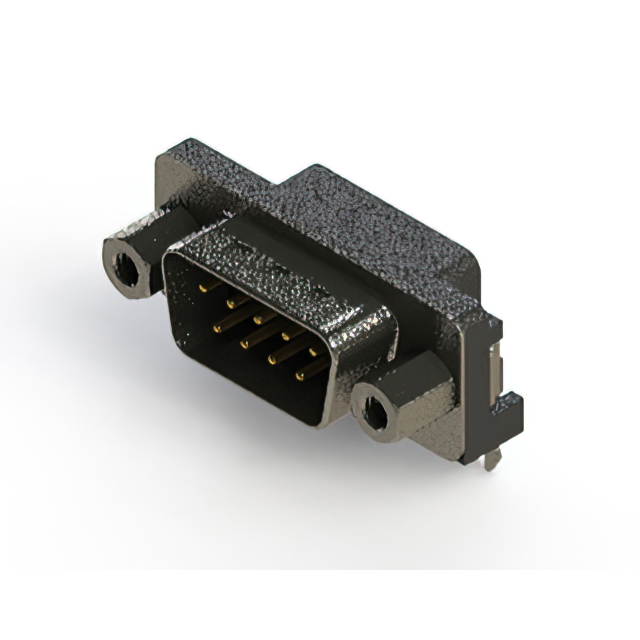

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Finish Thickness | Contact Type | Termination | Current Rating (Amps) | Material Flammability Rating | Backset Spacing | Backset Spacing | Number of Positions | Features | Contact Finish | Number of Rows [custom] | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Connector Type | Flange Feature | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | -55 C | 85 °C | Polyester Thermoplastic | Flash | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell | 4-40 | Board Edge Right Angle Through Hole | ||
 EDAC Inc. | Copper Alloy | Black | -55 C | 85 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | -55 C | 85 °C | Polyester Thermoplastic | Flash | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell | 4-40 | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
 EDAC Inc. | Copper Alloy | Black | -55 C | 85 °C | Polyester Thermoplastic | Flash | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Black | -55 C | 85 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell | 4-40 | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | |
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | Signal | Solder | 3 A | UL94 V-0 | 0.197 in | 5 mm | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Gold | 2 | Nickel Plated Steel | 1 | DE E | D-Sub | Plug Male Pins | Housing/Shell (M3) | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin |
