917-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

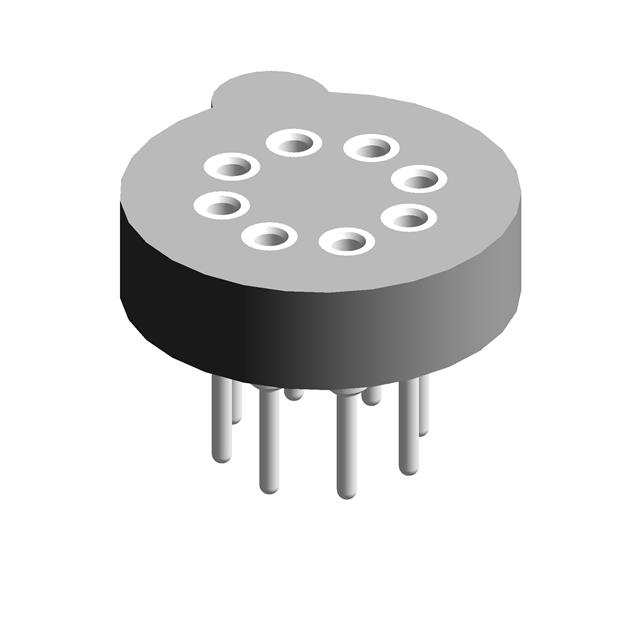

CONN TRANSIST TO-5 8POS GOLD
| Part | Material Flammability Rating | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Resistance | Contact Finish - Mating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Number of Positions or Pins (Grid) | Contact Finish Thickness - Mating | Termination | Contact Material - Post [custom] | Type | Contact Material - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | UL94 V-0 | 0.125 in | 3.18 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 8 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.055 in | 1.4 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 8 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.125 in | 3.18 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 4 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.055 in | 1.4 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 4 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.125 in | 3.18 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.055 in | 1.4 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 8 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.125 in | 3.18 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 3 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.055 in | 1.4 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 10 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
 Preci-Dip | UL94 V-0 | 0.125 in | 3.18 mm | 1 A | 10 mOhm | Gold | Through Hole | -55 C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 8 | Flash | Solder | Brass | Transistor TO-5 | Beryllium Copper | Tin |
