1538A Series
Manufacturer: Belden Inc.
Beta
⌘K

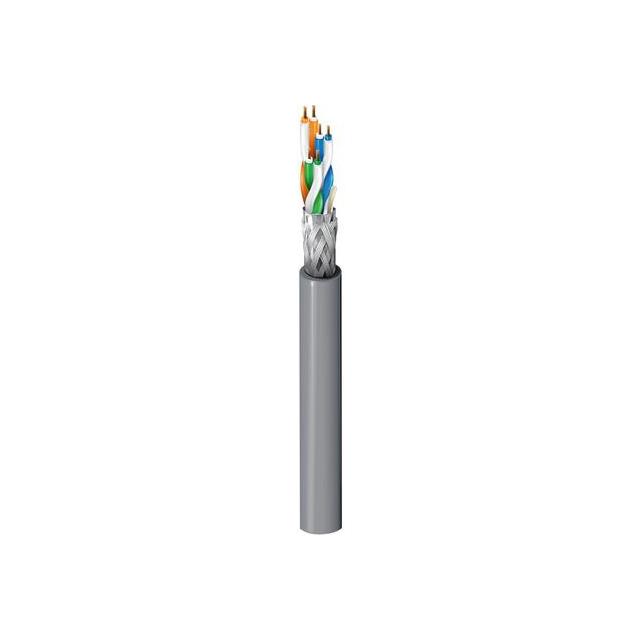

MULTI-PAIR 6CON 28AWG GRAY
| Part | Shield Material | Shield Coverage | Jacket Color | Features | Conductor Insulation | Shield Type | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Material | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Gray | Drain Wire | Polyethylene (PE) Polypropylene (PP) | Braid Foil | 304.8 m | 1000 ft | 0.02 " | 0.508 mm | 6 | 28 AWG | 7 | 36 AWG | 150 V | 0.23 in | 5.84 mm | Multi-Pair | Poly-Vinyl Chloride (PVC) | Copper Bare |
