09140012 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY MODULE, RCPT, 1POS, 6-4AWG

Part	Contact Material	Housing Material	Contact Finish	Number of Positions	Termination Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Current Rating (Amps)	Material Flammability Rating	Color	Voltage Rating

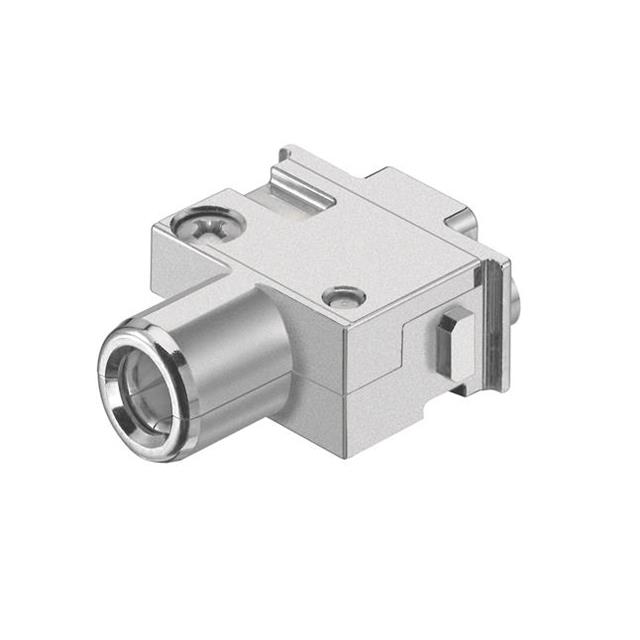

HARTING 09140012732	Copper Alloy	Zinc Die Cast	Silver	1	Screw	Module	125 °C	-40 C	Female

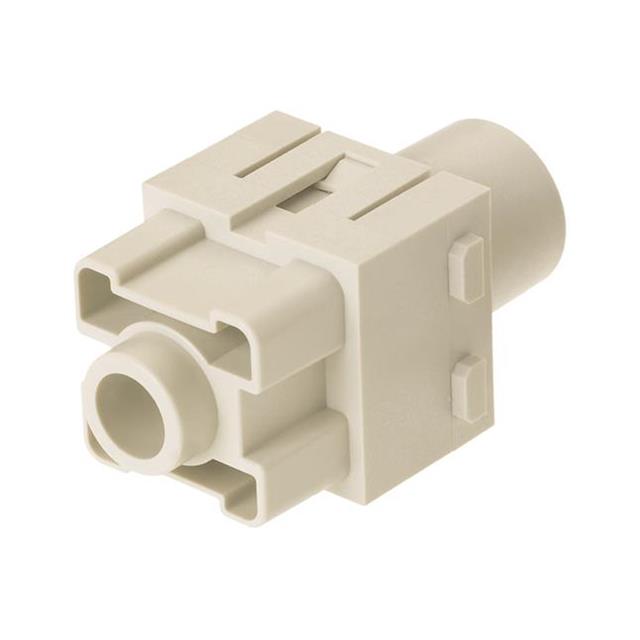

HARTING 09140012761						Module			Female	200 A
HARTING 09140012672
HARTING 09140012762	Copper Alloy	Polycarbonate (PC)	Silver	1	Screw	Module	125 °C	-40 C	Female	200 A	UL94 V-0	Gray	600 V

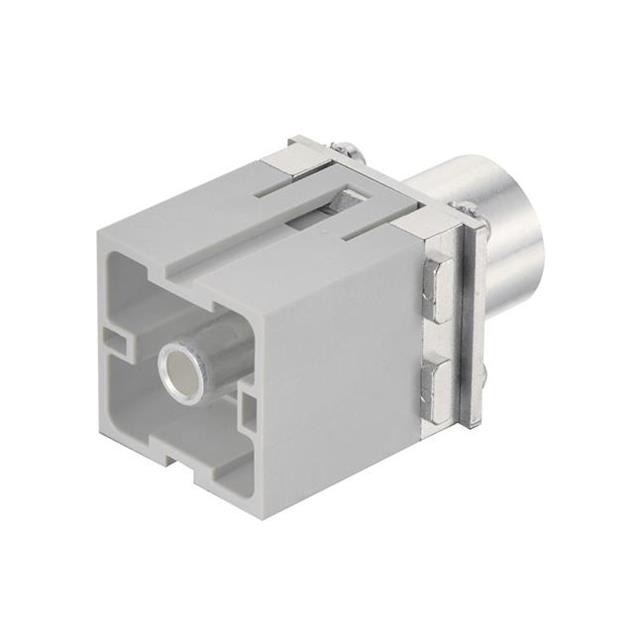

HARTING 09140012681	Copper Alloy	Polycarbonate (PC)	Silver	1	Screw	Module	125 °C	-40 C	Male		UL94 V-0	Gray

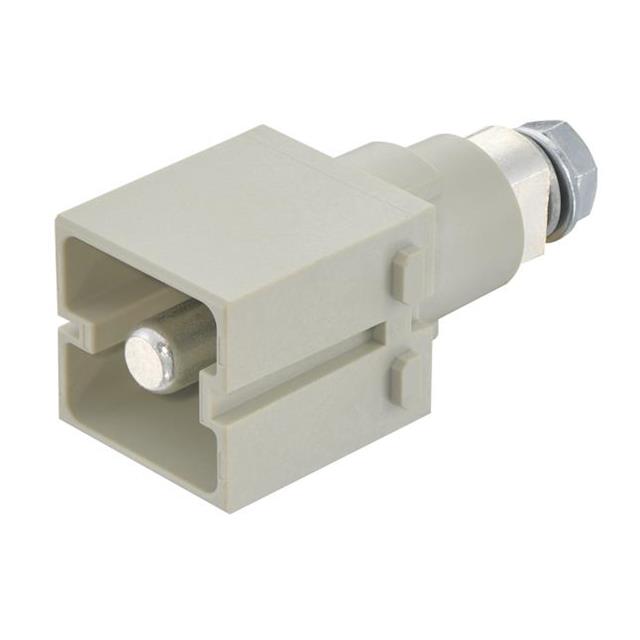

HARTING 09140012675						Module				200 A
HARTING 09140012768	Copper Alloy	Polycarbonate (PC)	Silver	1	Screw	Module	125 °C	-40 C	Female	200 A	UL94 V-0	Gray	600 V
HARTING 09140012734	Copper Alloy	Zinc Die Cast	Silver	1	Screw	Module	125 °C	-40 C	Female

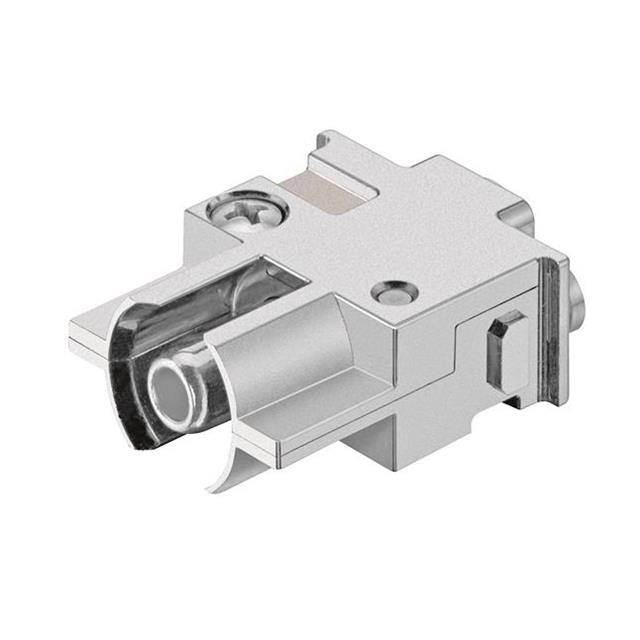

HARTING 09140012632	Copper Alloy	Zinc Die Cast	Silver	1	Screw	Module	125 °C	-40 C	Male

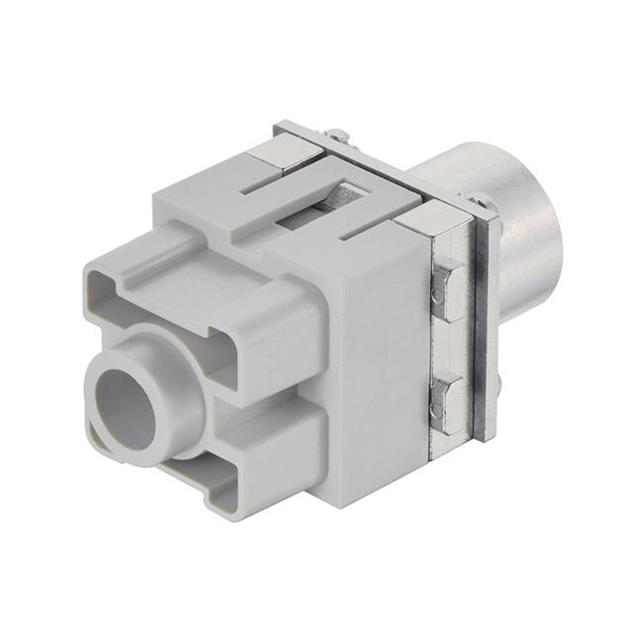

HARTING 09140012781	Copper Alloy	Polycarbonate (PC)	Silver	1	Screw	Module	125 °C	-40 C	Female		UL94 V-0	Gray
