ADC1173 Series
Manufacturer: Texas Instruments
Beta
⌘K
8-BIT 15MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)
| Part | Mounting Type | Number of A/D Converters | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of Bits | Package / Case | Package / Case | Architecture | Data Interface | Configuration | Sampling Rate (Per Second) | Input Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Supplier Device Package | Reference Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Inputs | Ratio - S/H:ADC | Package / Case [custom] | Package / Case [custom] | Power (Typ) @ Conditions | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 1 | 2.7 V | 3.6 V | 8 | 24-TSSOP | 0.173 in 4.4 mm | Two-Step | Parallel | S/H-ADC | 15 M per second | Single Ended | 3.6 V | 2.7 V | 24-TSSOP | External Internal | -40 °C | 75 ░C | 1 | 1:1 | |||||
Texas Instruments | Surface Mount | 1 | 2.7 V | 3.6 V | 8 | 24-SOIC | Two-Step | Parallel | S/H-ADC | 15 M per second | Single Ended | 3.6 V | 2.7 V | 24-SOIC | External Internal | -40 °C | 75 ░C | 1 | 1:1 | 5.3 mm | 0.209 in | ||||

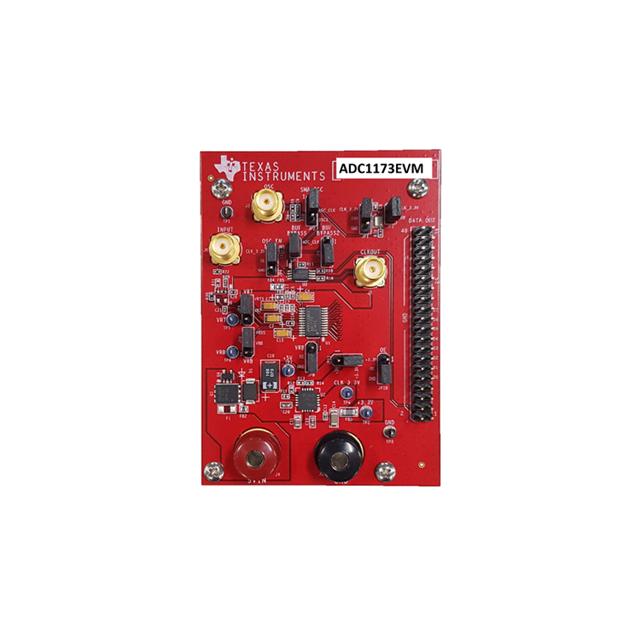

 Texas Instruments | 1 | 8 | Parallel | 15 M per second | 33 mW | Board(s) | ADC1173 |
