R14122 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

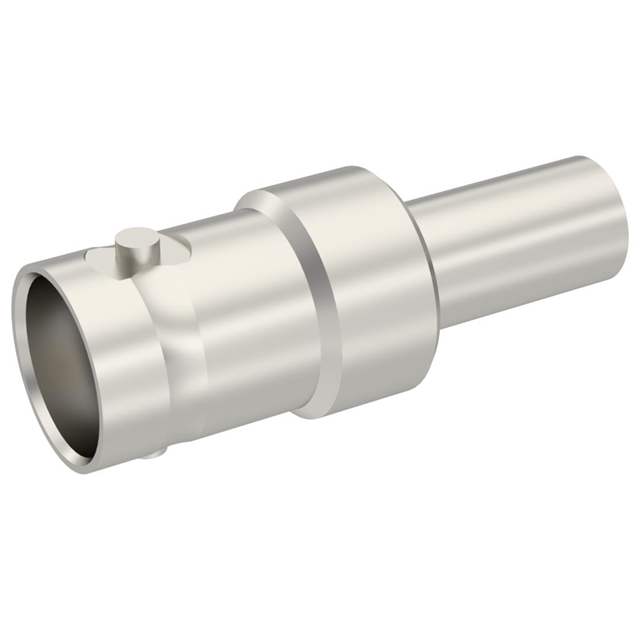

BNC F STR CR 5/50D C100
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Finish | Center Contact Plating | Body Material | Connector Type | Mounting Type | Contact Termination | Center Contact Material | Number of Ports | Housing Color | Impedance | Frequency - Max [Max] | Fastening Type | Connector Style | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | 500 V | Nickel | Gold | Brass | Female Socket Jack | Free Hanging (In-Line) | Crimp | Beryllium Copper | 1 | Silver | 50 Ohms | 4 GHz | Bayonet Lock | BNC | Crimp | 223 400 RG-142 |
