86701CY Series

Catalog

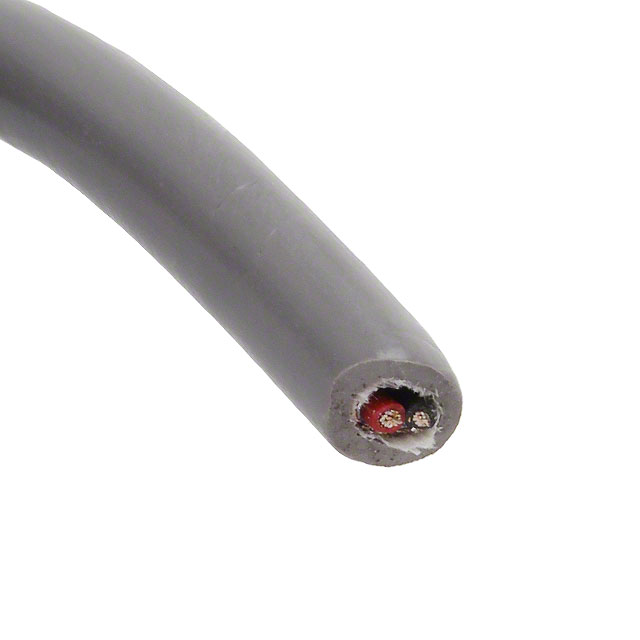

CABLE 2COND 22AWG SHLD 1000'

Part	Shield Coverage	Shield Material	Features	Cable Type	Conductor Material	Number of Conductors	Length	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Type	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Usage	Spool Size [x]	Spool Size [x]	Length	Length [x]	Length [x]
ALPHA WIRE 86701CY SL001	85 % 100 %	Copper Tinned Suprashield®	Biological Compatibility Drain Wire	Multi-Conductor	Copper Tinned	2	304.8 m	1000 ft	Slate	5.59 mm	0.22 in	Poly-Vinyl Chloride (PVC)	Braid Foil	Poly-Vinyl Chloride (PVC)	22 AWG	1.016 mm	0.04 in	300 VDC	34 AWG	19	ISO 10993 UL Style 2661	Communication Control
ALPHA WIRE 86701CY SL010	85 % 100 %	Aluminum Copper Tinned	Drain Wire	Multi-Conductor	Copper Tinned	2			Slate	5.59 mm	0.22 in	Poly-Vinyl Chloride (PVC)	Braid Foil	Poly-Vinyl Chloride (PVC)	22 AWG	1.016 mm	0.04 in	300 VDC	34 AWG	19		Communication Control	762 m	2500 '	Enter Number of Feet in Order Quantity
ALPHA WIRE 86701CY SL199	85 % 100 %	Copper Tinned Suprashield®	Biological Compatibility Drain Wire	Multi-Conductor	Copper Tinned	2			Slate	5.59 mm	0.22 in	Poly-Vinyl Chloride (PVC)	Braid Foil	Poly-Vinyl Chloride (PVC)	22 AWG	1.016 mm	0.04 in	300 VDC	34 AWG	19	ISO 10993 UL Style 2661	Communication Control				100 ft	30.5 m
