LNE-24 Series

Catalog

LED DRIVER CC/CV AC/DC 24V 4A

Part	Mounting Type	Weight	Weight	Voltage - Output [Max]	Voltage - Output [Min]	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Voltage - Isolation	Termination Style	Current - Output (Max) [Max]	Power (Watts)	Ratings	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Standard Number	Dimming

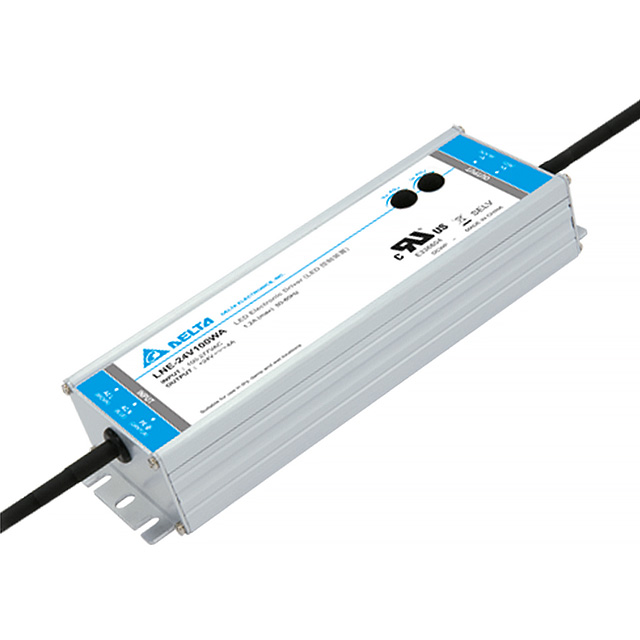

Delta Electronics LNE-24V100WAAA	Chassis Mount	997.9 g	2.2 lbs	24 V	12 V	Constant Current Voltage	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	UL	3.85 kV	Wire Leads	4 A	100 W	IP65	90 VAC	305 VAC	1	93 %	OCP OTP OVP SCP	70 °C	-40 C	AC DC Converter	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384
Delta Electronics LNE-24V320WDAA	Chassis Mount			24 V	12 V	Constant Current Voltage	43.7 mm	89.9 mm	9.92 "	3.54 in	1.72 in	252 mm	UL	3.85 kV	Wire Leads	13.4 A	320 W	IP67	90 VAC	305 VAC	1	94 %	OCP OTP OVP SCP	70 °C	-40 C	AC DC Converter	50581 60950-1 8750	Analog PWM

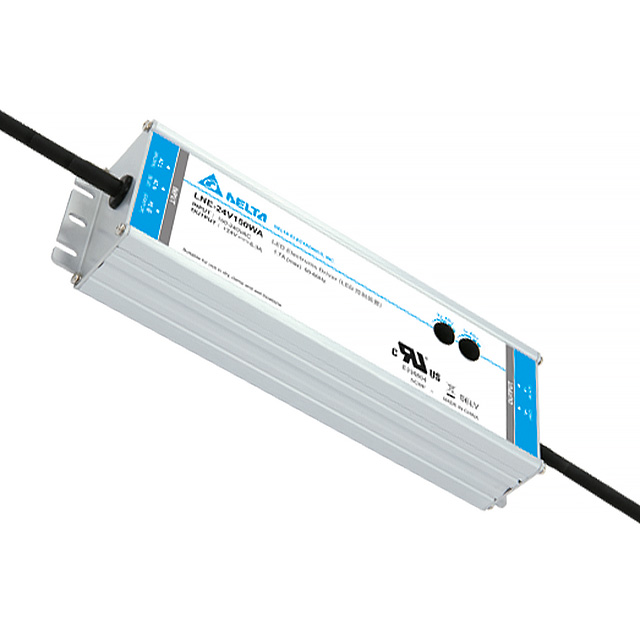

Delta Electronics LNE-24V150WAAA	Chassis Mount	1.1 kg	2.4 lbs	24 V	12 V	Constant Current Voltage	38.8 mm	68 mm	8.03 in	2.68 in	1.53 in	204 mm	UL	3.85 kV	Wire Leads	6.3 A	150 W	IP65	90 VAC	305 VAC	1	93 %	OCP OTP OVP SCP	70 °C	-40 C	AC DC Converter	50581 60950-1 8750

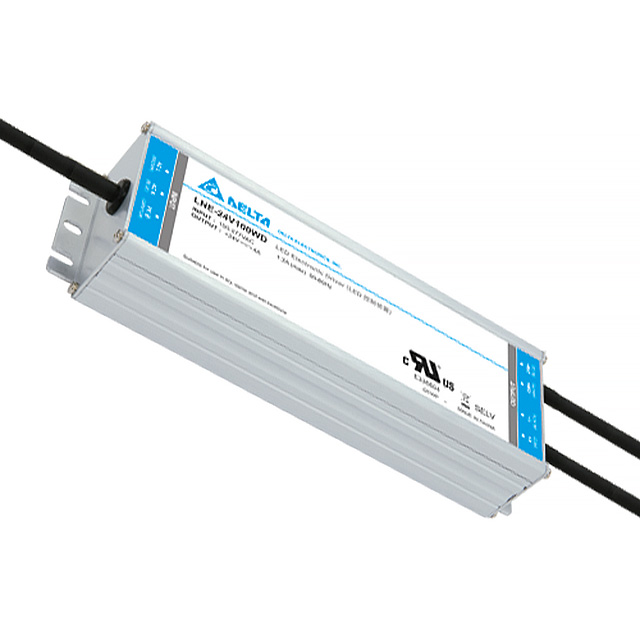

Delta Electronics LNE-24V100WDAA	Chassis Mount	997.9 g	2.2 lbs	24 V	12 V	Constant Current Voltage	38.8 mm	68 mm	7.72 in	2.68 in	1.53 in	196 mm	UL	3.85 kV	Wire Leads	4 A	100 W	IP67	90 VAC	305 VAC	1	93 %	OCP OTP OVP SCP	70 °C	-40 C	AC DC Converter	50581 55015 55024 61000-3-2 61000-3-3 61347-1 61347-2-13 62384	Analog PWM
