DCCM15 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CONN MICRO-D PLUG 15POS R/A SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Material Flammability Rating	Connector Type	Number of Rows [custom]	Features	Connector Style	Contact Type	Number of Positions	Current Rating (Amps)	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Termination	Mounting Type	Contact Finish	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Shell Material, Finish	Type	2nd Connector	Color	Length	Length	1st Connector

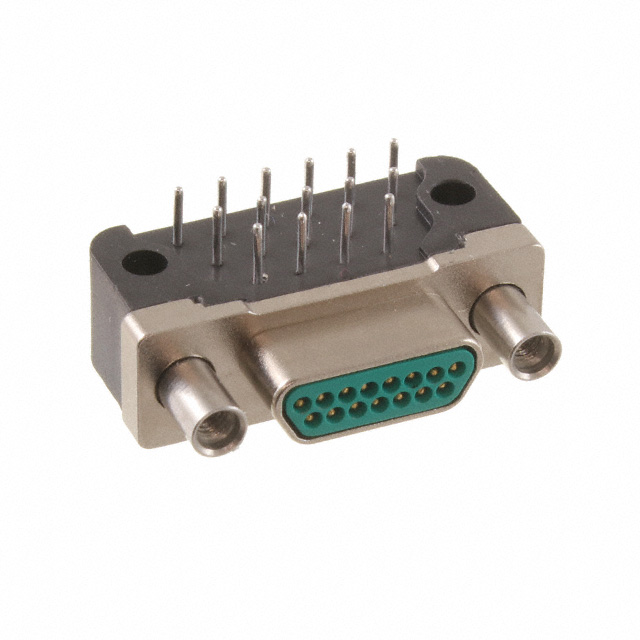

Cinch Connectivity Solutions DCCM15PCBRPN	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Plug Male Pins	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in	Solder	Right Angle Through Hole	Gold	Female Screwlock Mating Side	50 µin	1.27 µm	0.13 in	3.3 mm	Aluminum Alloy Electroless Nickel Plated

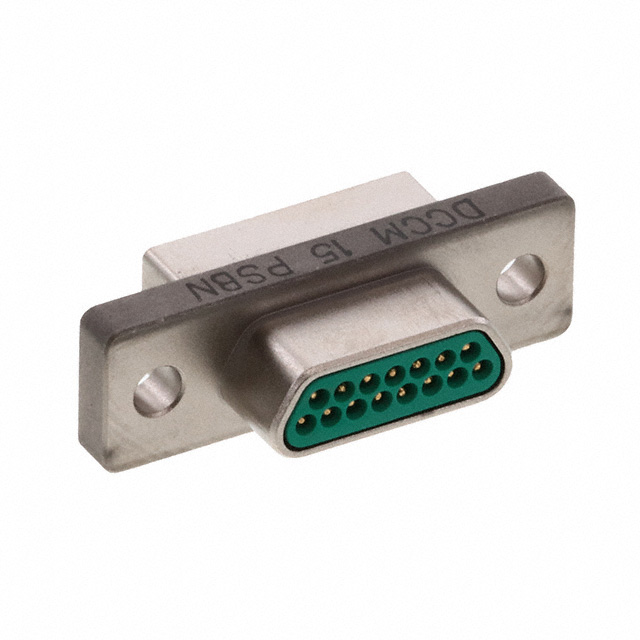

Cinch Connectivity Solutions DCCM15PSBN	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Plug Male Pins	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in		Panel Mount	Gold		50 µin	1.27 µm			Aluminum Alloy Electroless Nickel Plated
Cinch Connectivity Solutions DCCM15SBSP	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Receptacle Female Sockets	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in	Solder	Through Hole	Gold	Female Screwlock Mating Side	50 µin	1.27 µm			Aluminum Alloy Yellow Chromate Plated Cadmium
Cinch Connectivity Solutions DCCM15PSB	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Plug Male Pins	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in		Panel Mount	Gold		50 µin	1.27 µm			Aluminum Alloy Yellow Chromate Plated Cadmium
Cinch Connectivity Solutions DCCM15S6E5-36.0BN											15						Gold		50 µin	1.27 µm				D-Type Micro-D	Individual Wire Leads	Individual Multiple	91.44 cm	3 ft	Receptacle Female Sockets
Cinch Connectivity Solutions DCCM15SSBN	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Receptacle Female Sockets	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in		Panel Mount	Gold		50 µin	1.27 µm			Aluminum Alloy Electroless Nickel Plated
Cinch Connectivity Solutions DCCM15SSB	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Receptacle Female Sockets	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in		Panel Mount	Gold		50 µin	1.27 µm			Aluminum Alloy Yellow Chromate Plated Cadmium
Cinch Connectivity Solutions DCCM15PBSPN	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Plug Male Pins	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in	Solder	Through Hole	Gold	Female Screwlock Mating Side	50 µin	1.27 µm			Aluminum Alloy Electroless Nickel Plated
Cinch Connectivity Solutions DCCM15PBSP	-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	UL94 V-0	Plug Male Pins	2	Shielded	D-Type Micro-D	Signal	15	3 A	0.043 in	0.05 in	Solder	Through Hole	Gold	Female Screwlock Mating Side	50 µin	1.27 µm			Aluminum Alloy Yellow Chromate Plated Cadmium
