PHH225K Series
Manufacturer: KEMET
Beta
⌘K

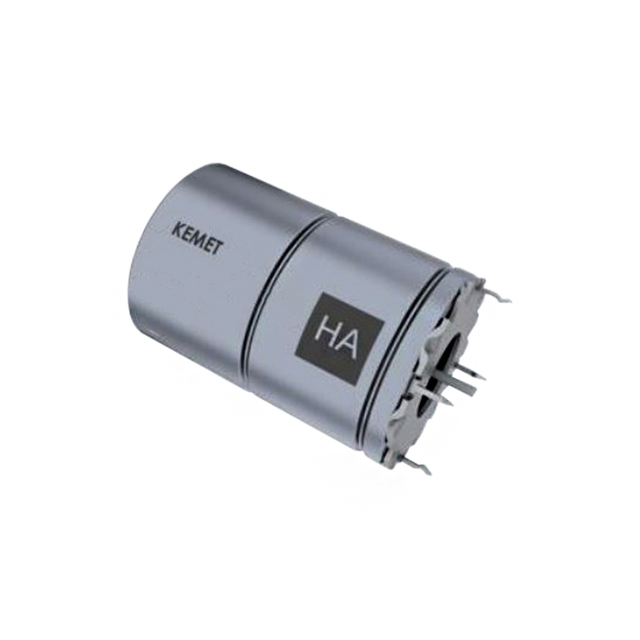

CAP, 1100UF, 40V, ALU ELEC, HYBRID, RAD ROHS COMPLIANT: YES
| Part | Lifetime @ Temp. | Ripple Current @ High Frequency | Mounting Type | Ripple Current @ Low Frequency | Type | Tolerance [Min] | Tolerance [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | ESR (Equivalent Series Resistance) | Capacitance | Features | Lead Spacing | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 3000 Hrs | 40.9 A | Through Hole | 8.18 A | Hybrid | -10 % | 30 % | 18.2 mm | 0.717 " | Can Radial | 1.445 in | 36.7 mm | General Purpose | 125 °C | -40 C | 40 V | 80 mOhm | 1100 µF | High Vibration | 0.6 in | 15.24 mm |
