120071 Series

Manufacturer: Molex

Catalog

MICRO-CHANGE (M12) FIELD ATTACHABLE CONNECTOR, 5 POLES, STRAIGHT, FEMALE, SHIELDED, SCREW TERMINATION, CABLE DIAMETER 6.00-8.00MM

Part	Orientation	Connector Type	Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shielding	Contact Material	Features	Voltage Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Primary Material	Shell Size - Insert	Ingress Protection	Current Rating (Amps)	Shell Material	Termination	Applications	Backshell Material, Plating	Shell Finish	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]

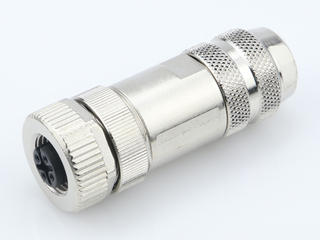

Molex 1200710081	Keyed	Female Sockets Plug	Silver	Free Hanging (In-Line) Right Angle	85 °C	-40 °C	Gold	Shielded	Brass	Backshell Coupling Nut	60 VDC	8 mm	6 mm	0.315 in	0.236 in	Metal	M12-5	IP67 - Dust Tight Waterproof	4 A	Zinc Die Cast	Screw
Molex 1200710042

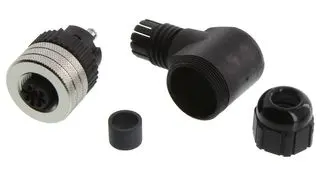

Molex 1200710044	Keyed	Female Sockets Plug	Black Silver	Free Hanging (In-Line) Right Angle	90 °C	-25 °C	Silver		Copper Alloy	Backshell Coupling Nut	30 VAC 36 VDC	6.6 mm	3.3 mm	0.26 in	0.13 in	Metal	M12-5	IP67 - Dust Tight Waterproof	4 A	Brass	Screw	Industrial	Nylon Polyamide (PA)	Nickel	Nylon Polyamide (PA)

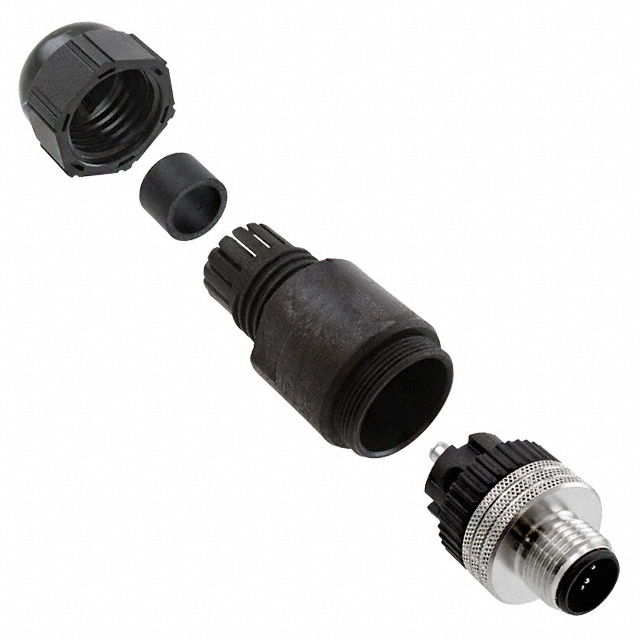

Molex 1200710047	Keyed	Male Pins Receptacle	Black Silver	Free Hanging (In-Line)	90 °C	-25 °C	Silver		Copper Alloy	Backshell	30 VAC 36 VDC					Metal	M12-5	IP67 - Dust Tight Waterproof	4 A	Brass	Screw	Industrial	Nylon Polyamide (PA)	Nickel	Nylon Polyamide (PA)	4.1 mm 8.1 mm	0.161 in 0.319 in
Molex 1200710048
Molex 1200710065

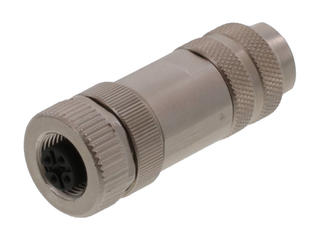

Molex 1200710033	Keyed	Female Sockets Plug	Silver	Free Hanging (In-Line)	85 °C	-40 °C	Gold	Shielded	Brass	Backshell Coupling Nut	250 VDC	8 mm	6 mm	0.315 in	0.236 in	Metal	M12-4	IP67 - Dust Tight Waterproof	4 A	Zinc Die Cast	Screw	Industrial	Zinc Die Cast					4
Molex 1200710087	Keyed	Female Sockets Plug	Black Silver	Free Hanging (In-Line)	80 C	-25 °C	Gold	Unshielded	Copper Tin	Backshell Coupling Nut	125 VDC					Metal	M12-4	IP65 IP67	4 A	Zinc Die Cast	IDC	Industrial	Nylon Polyamide (PA)	Nickel				4	6 mm	0.138 in 0.236 in	3.5 mm

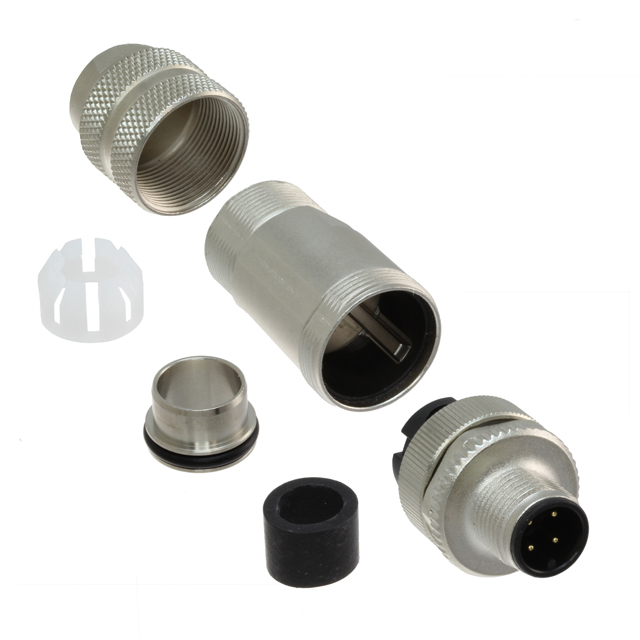

Molex 1200710032	Keyed	Male Pins Receptacle	Silver	Free Hanging (In-Line)	85 °C	-40 °C	Gold	Shielded	Brass	Backshell	250 VDC	8 mm	6 mm	0.315 in	0.236 in	Metal	M12-4	IP67 - Dust Tight Waterproof	4 A	Zinc Die Cast	Screw	Industrial	Zinc Die Cast					4
Molex 1200710034	Keyed	Male Pins Receptacle	Silver	Free Hanging (In-Line)	85 °C	-40 °C	Gold	Shielded	Brass	Backshell Coupling Nut	60 VDC	8 mm	6 mm	0.315 in	0.236 in	Metal	M12-5	IP67 - Dust Tight Waterproof	4 A	Zinc Die Cast	Screw
