QSB320 Series

Catalog

SENSOR PHOTO 880NM TOP VIEW PLCC

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Wavelength	Current - Dark (Id) (Max) [Max]	Package / Case	Viewing Angle	Power - Max [Max]

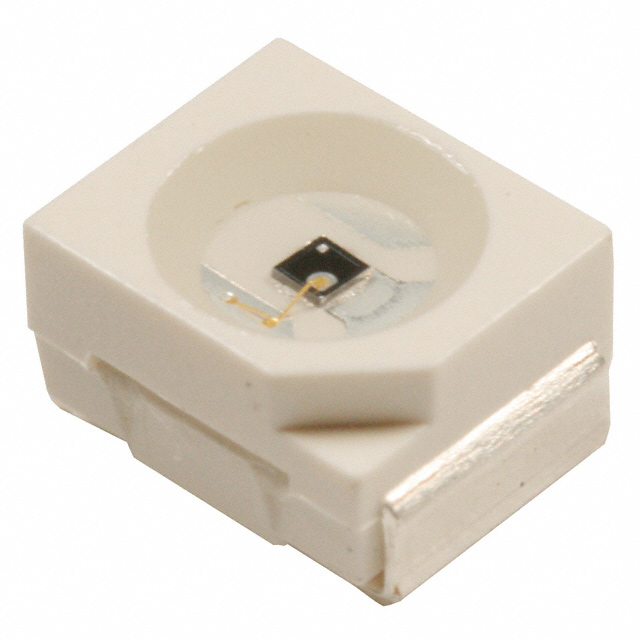

ON Semiconductor QSB320TR	35 V	Surface Mount	Top View	100 °C	-55 °C	15 mA	880 nm	200 nA	2-PLCC	120 °	165 mW
ON Semiconductor QSB320	35 V	Surface Mount	Top View	100 °C	-55 °C	15 mA	880 nm	200 nA	2-PLCC	120 °	165 mW
