0034.5715 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

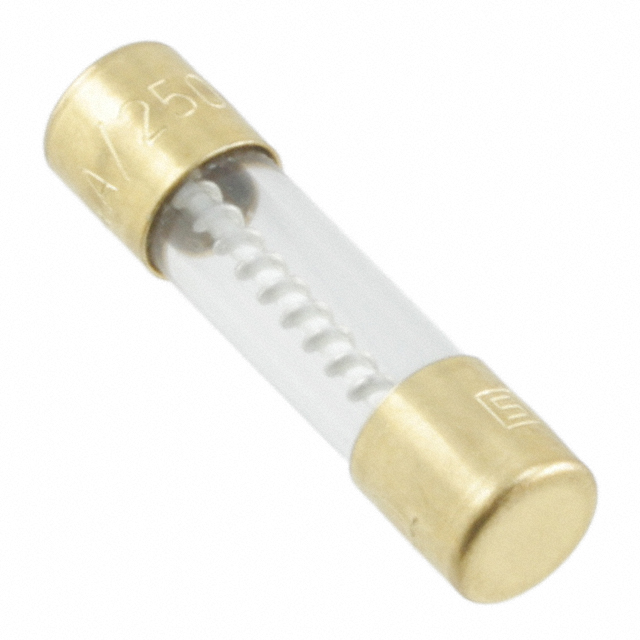

FUSE GLASS 1.6A 250VAC 5X20MM
| Part | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage Rating - AC | Fuse Type | Melting I²t | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case [x] | Package / Case [y] | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1.6 A | 35 A | -55 C | 125 °C | Requires Holder | 250 V | Cartridge Glass | 87 | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 5 mm | 20 mm | Slow Blow |
SCHURTER Inc. | 1.6 A | 35 A | -55 C | 125 °C | Requires Holder | 250 V | Cartridge Glass | 87 | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 5 mm | 20 mm | Slow Blow |
